Universal PC bracket

mounts to display mount or column
Item number: MINI-UNI
Product image Universal PC bracket MINI-UNI
Product image Universal PC bracket MINI-UNI-1 Product image Universal PC bracket MINI-UNI-2 Product image Universal PC bracket MINI-UNI-3 Product image Universal PC bracket MINI-UNI-4 Product image Universal PC bracket MINI-UNI-5

Product description

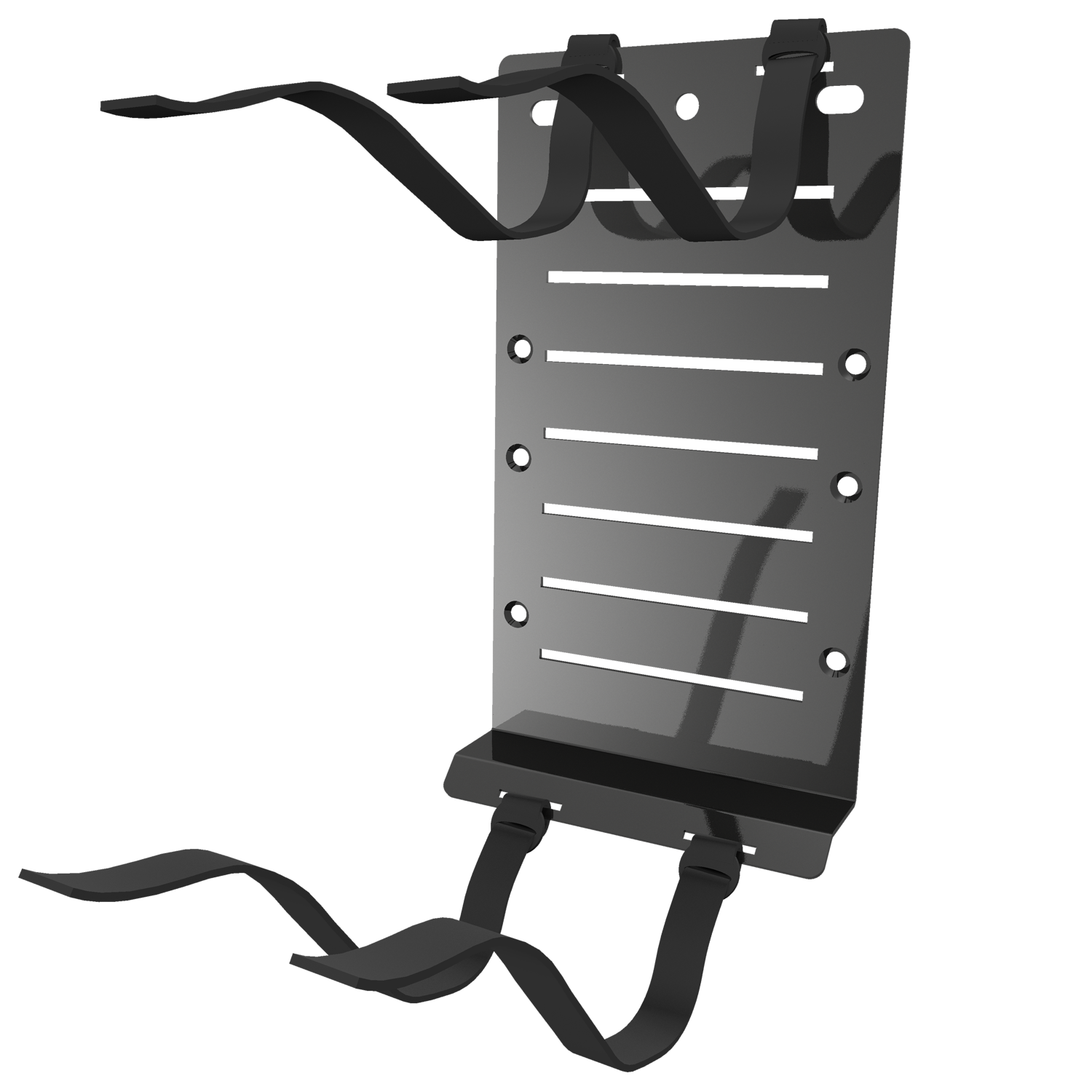

Universal bracket for PC. For mounting to pylon or displsay mount.


Features

  • Steel plate 2 mm
  • Load capacity 10 kg
  • Powder coated in black, RAL 9005
  • Including mounting material for attachment to the column (2x sliding block with thread, 2x nut with integrated washer)
  • Including mounting material for attachment to the rear of the column (1x sliding block with thread, 1x nut with integrated washer)
  • Including assembly material for mounting to the display mount (2x countersunk head screw, 2x nut, 2x washer)
  • 6 self-adhesive anti-slip pads (between PC and holder)
  • 4 Velcro straps (each approximately 40 cm long) secure the PC

Icon display mounts
Display mount
Icon projector mounts
Projector mount
Icon interactive whiteboard mounts
IWB mount
Icon maximum load
Max. load
22 lbs
Item numberMINI-UNI
Load capacity10 kg 22 lbs

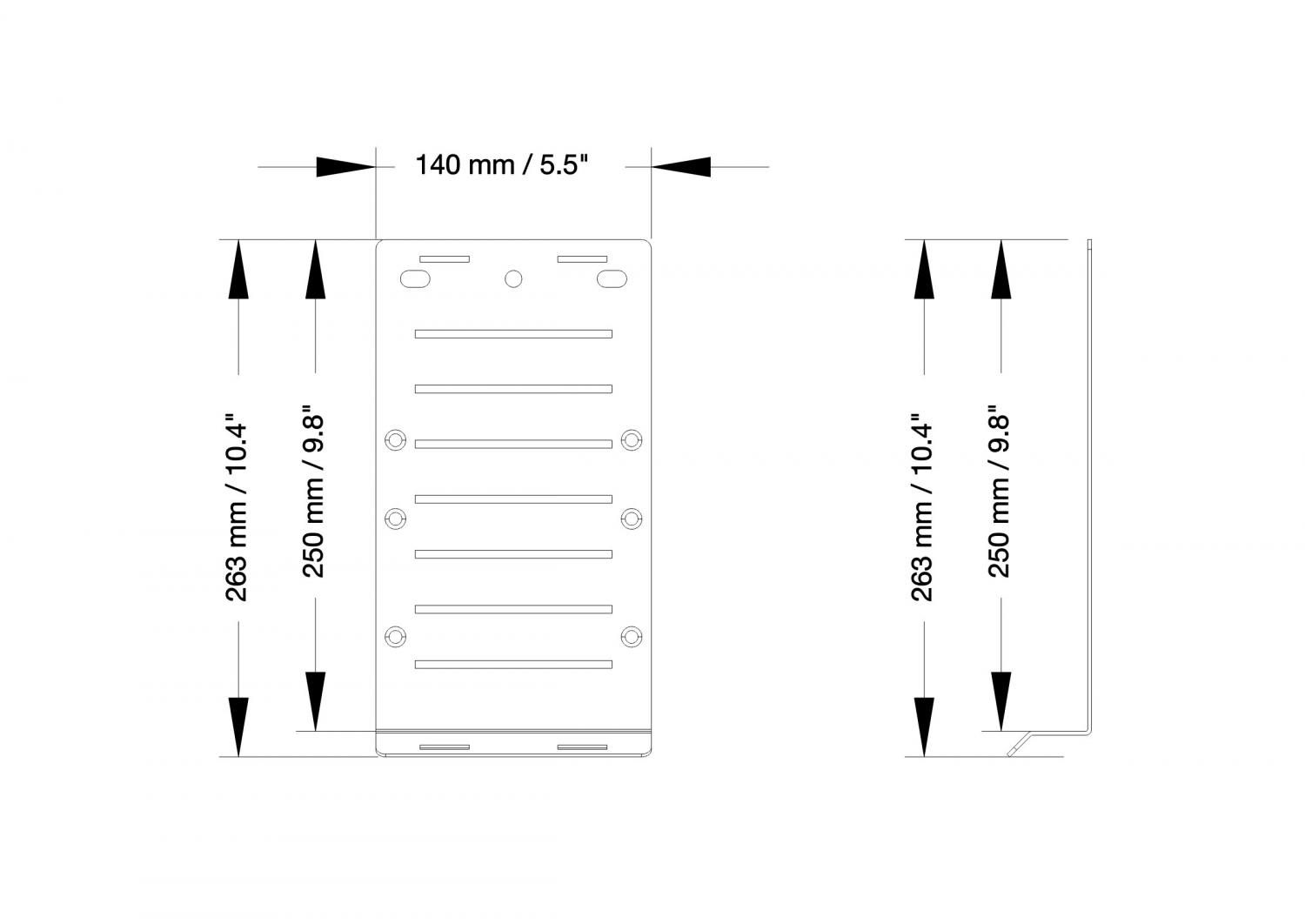

Width 140 mm5.5"
Height 270 mm10.6"
Depth 40 mm1.6"
Packages Package dimensions WxHxD Package weight
MINI-UNI280 x 65 x 170 mm / 11 x 2.6 x 6.7"0,8 kg / 1.8 lbs
Product sheet DE
MINI-UNI
Image PDF download Image show PDF
Product sheet EN
MINI-UNI
Image PDF download Image show PDF
