Digital signage monitor wall mount for displays

Landscape- or portrait format, rotatable
Item number: SCETANHVWLP

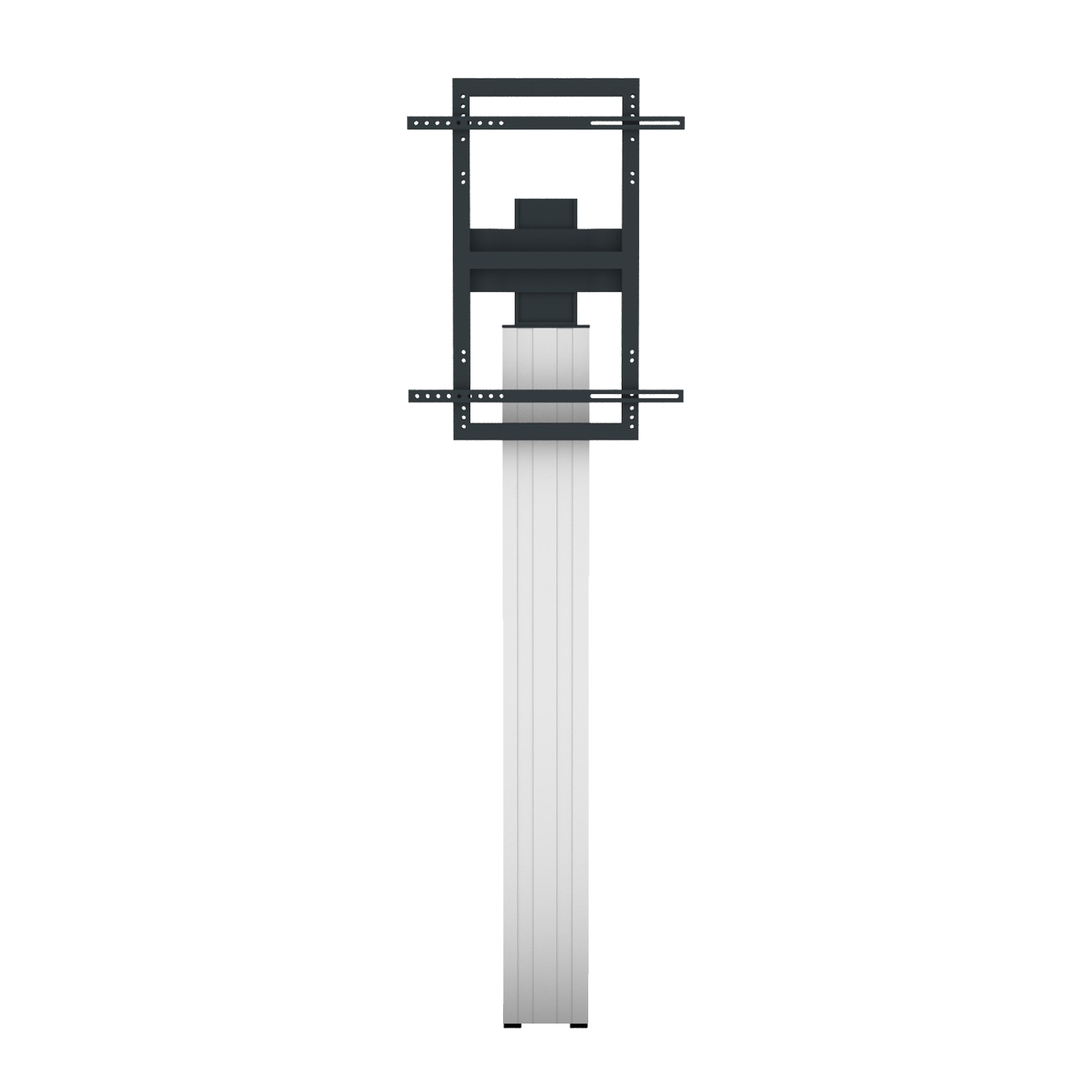

Product image Digital signage monitor wall mount for displays SCETANHVWLP
Product image Digital signage monitor wall mount for displays SCETANHVWLP-1 Product image Digital signage monitor wall mount for displays SCETANHVWLP-2 Product image Digital signage monitor wall mount for displays SCETANHVWLP-3 Product image Digital signage monitor wall mount for displays SCETANHVWLP-4 Product image Digital signage monitor wall mount for displays SCETANHVWLP-5 Product image Digital signage monitor wall mount for displays SCETANHVWLP-6 Product image Digital signage monitor wall mount for displays SCETANHVWLP-7

Product description

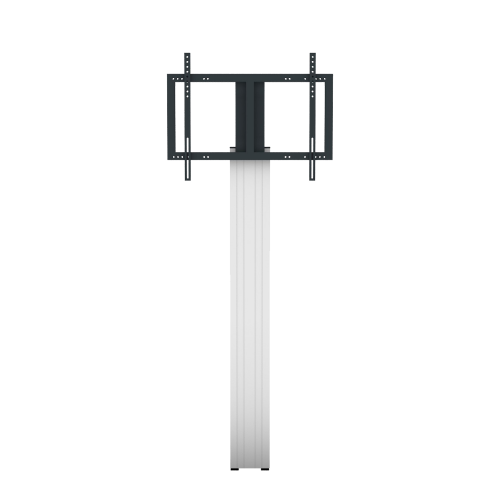

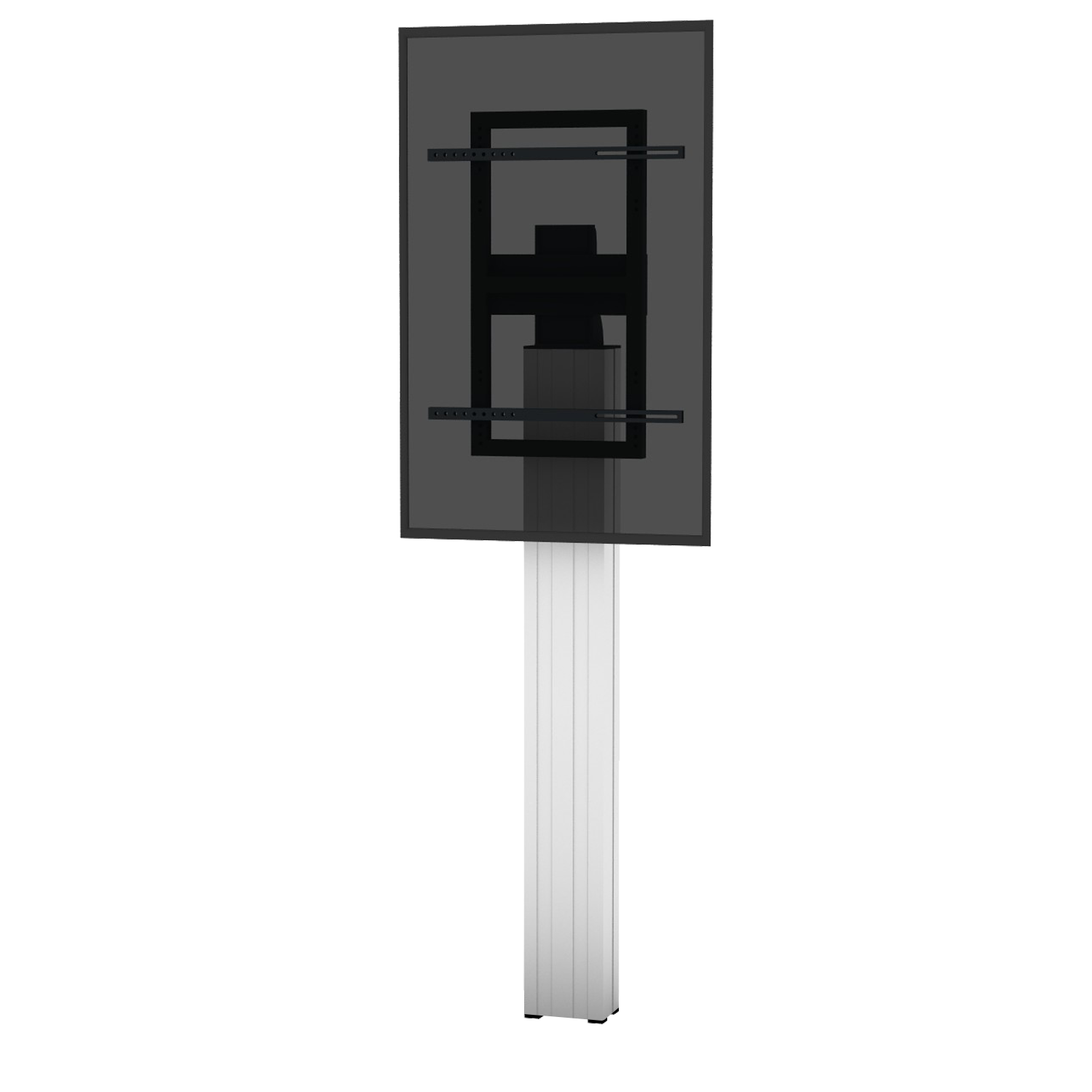

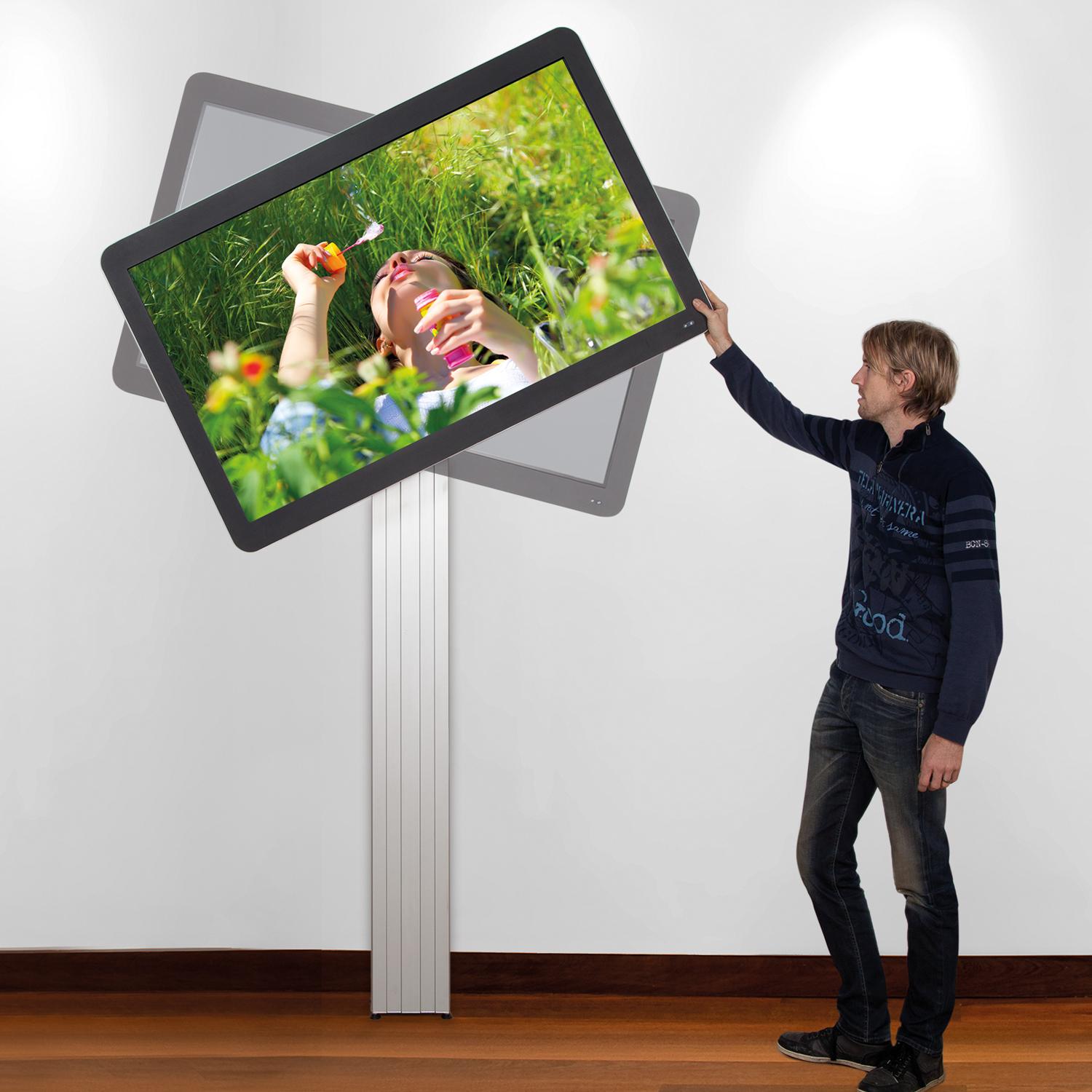

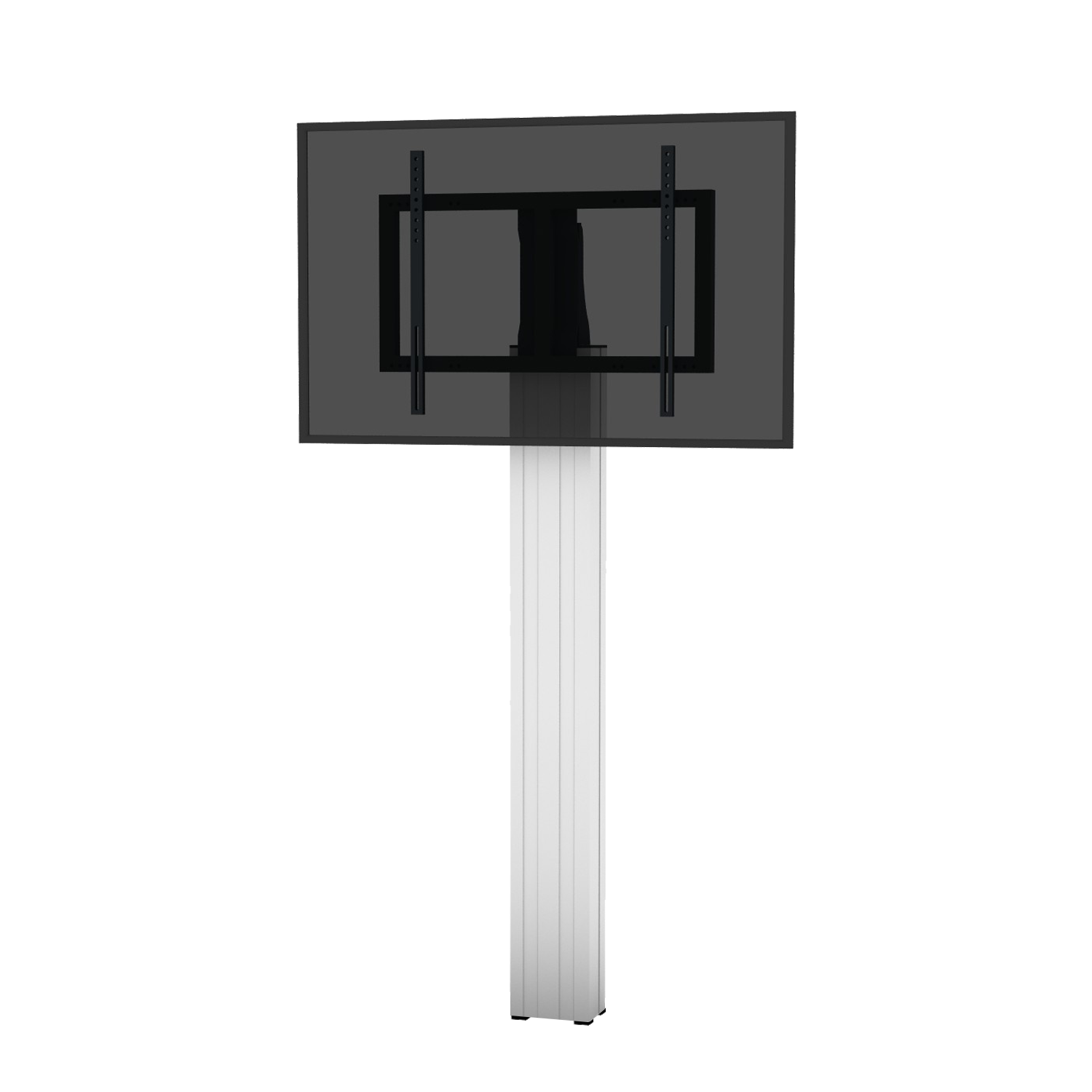

Digital signage solution - monitor wall mount for use with digital signage monitors with a screen diagonal of 55"-86" The monitor wall mount is equipped with a central aluminum column in a fixed height. Mounted above the center column is a display mount bracket for digital signage monitors showing your digital ad. Switch easily and quickly between landscape and portrait format by simply rotating the display.


Features

  • Frame for holding 55"-86" digital signage monitors
  • For mounting on concrete walls
  • Comfortable change between landscape and portrait format
  • 4 floor leveling feet
Request a quotation!
Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon fixed height
Fixed height
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
440.9 lbsIcon maximal VESA
Max. Vesa
800 x 600
Item numberSCETANHVWLP
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all55" - 86"
Center to floor distance 1950 mm76.8"
Load capacity200 kg 440.9 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Packages Package dimensions WxHxD Package weight
AFSCETALP880 x 470 x 240 mm / 34.6 x 18.5 x 9.4"18 kg / 39.7 lbs
CC170W1985 x 270 x 200 mm / 78.1 x 10.6 x 7.9"29,9 kg / 65.9 lbs
Total weight 47,9 kg / 105.6 lbs

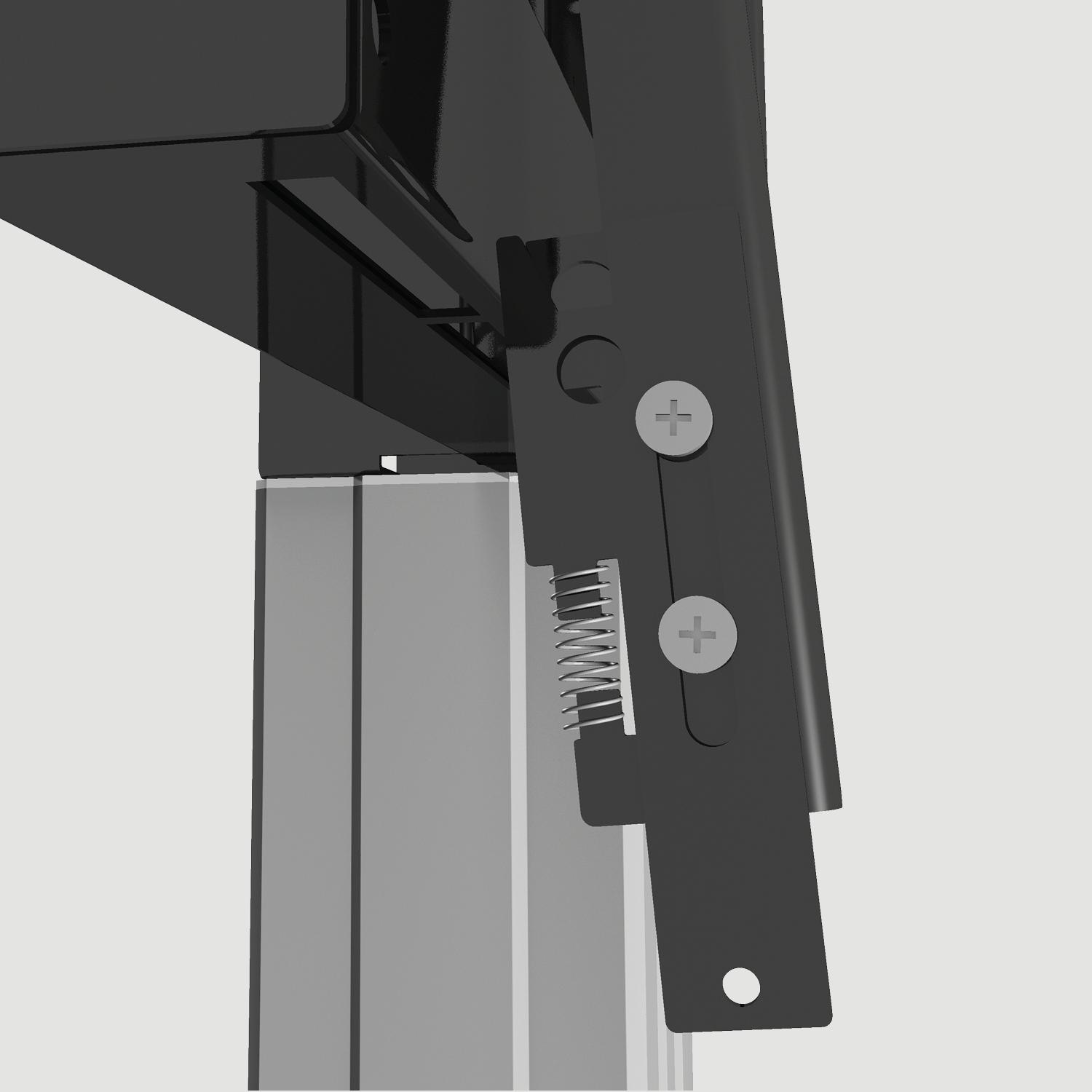

Quick snap lock
Detail image Quick snap lock SCETANHVWLPWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.

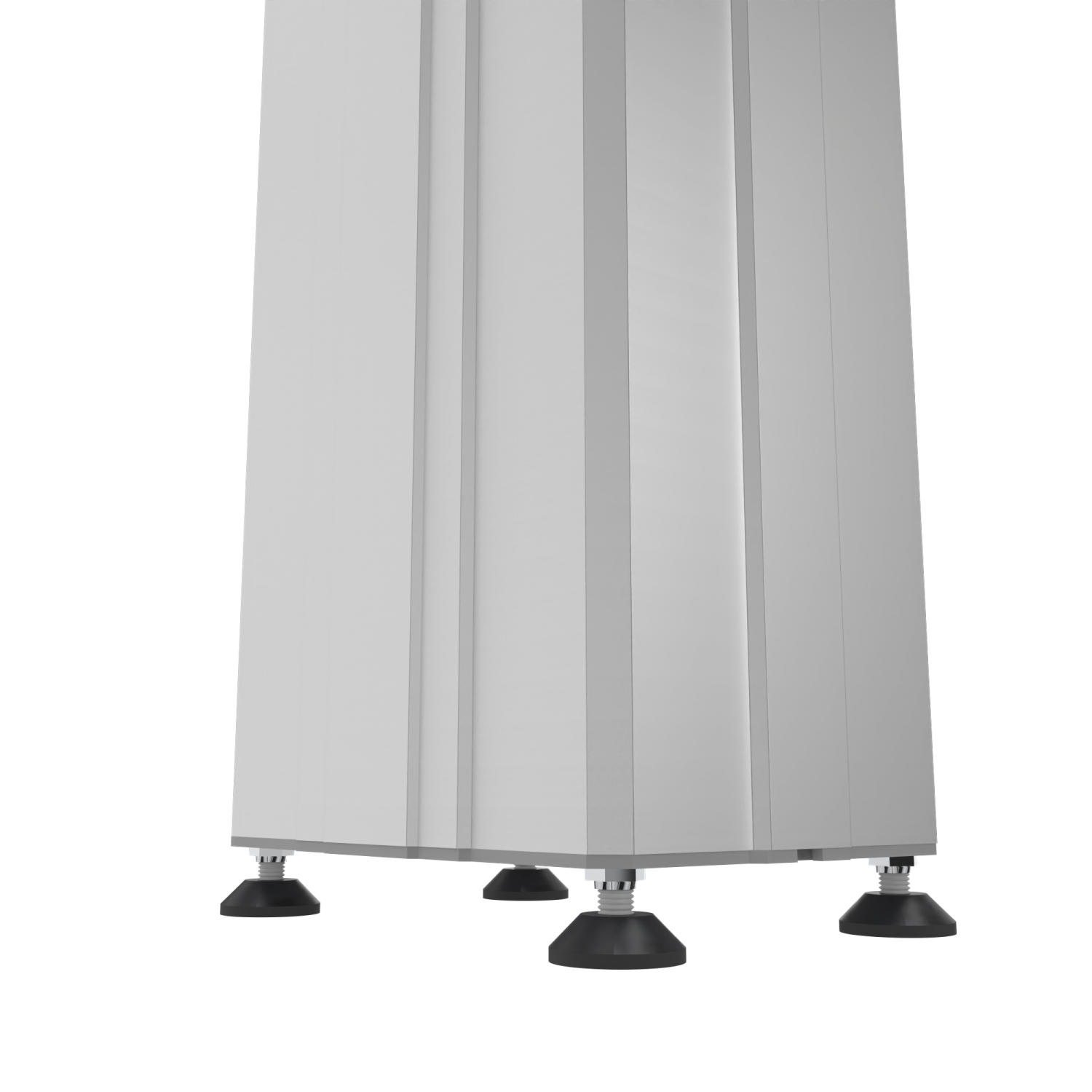

Four leveling feet
Detail image Four leveling feet SCETANHVWLPThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.

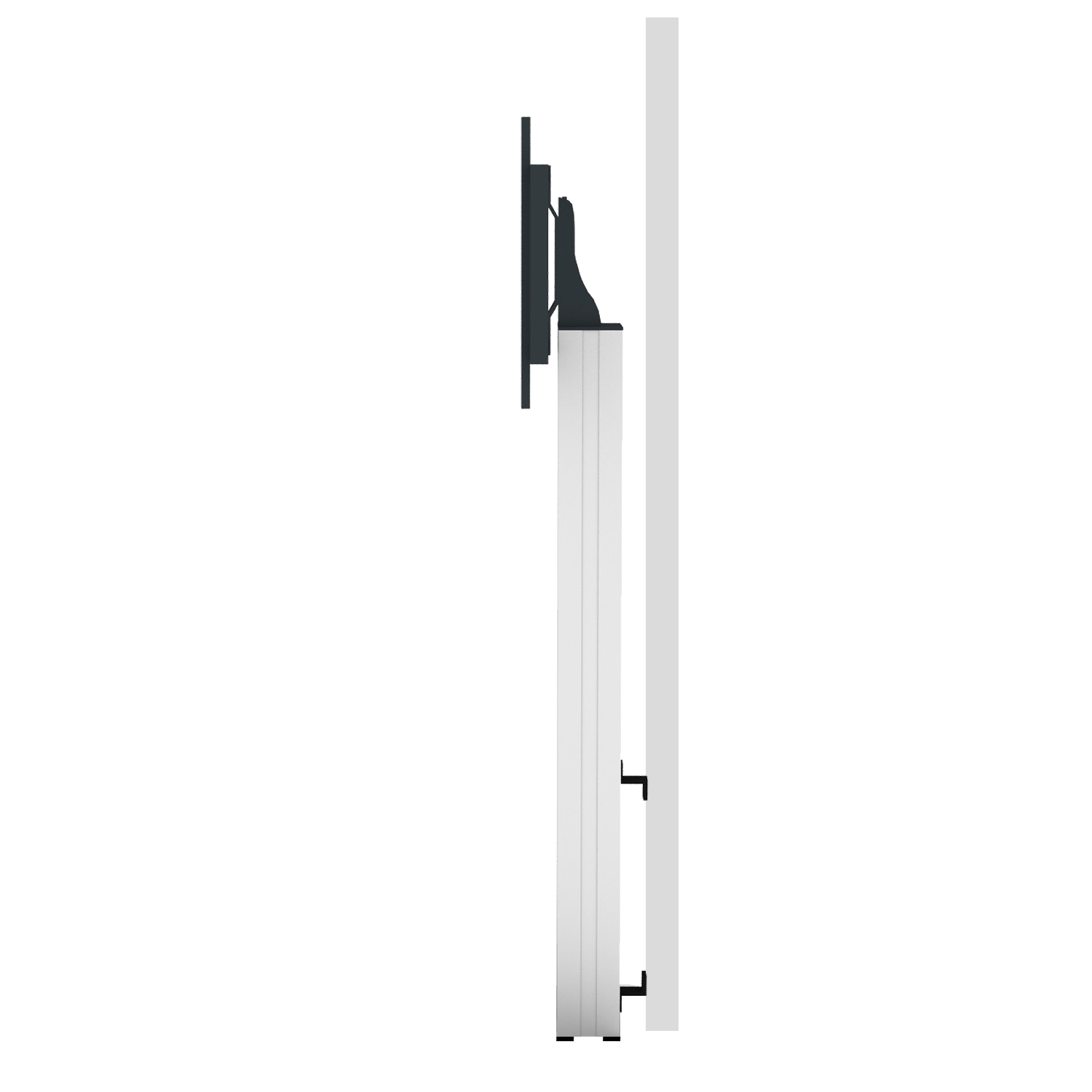

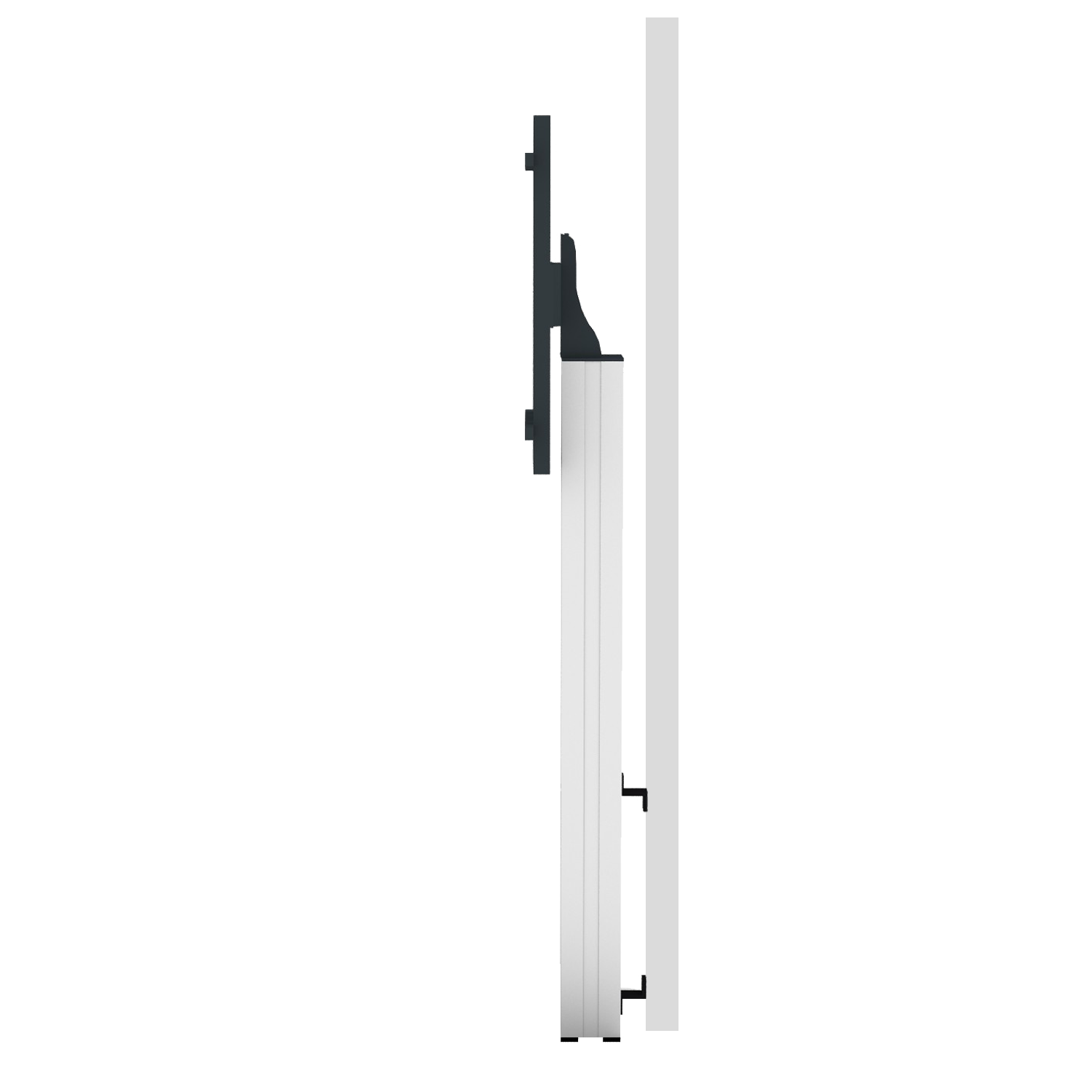

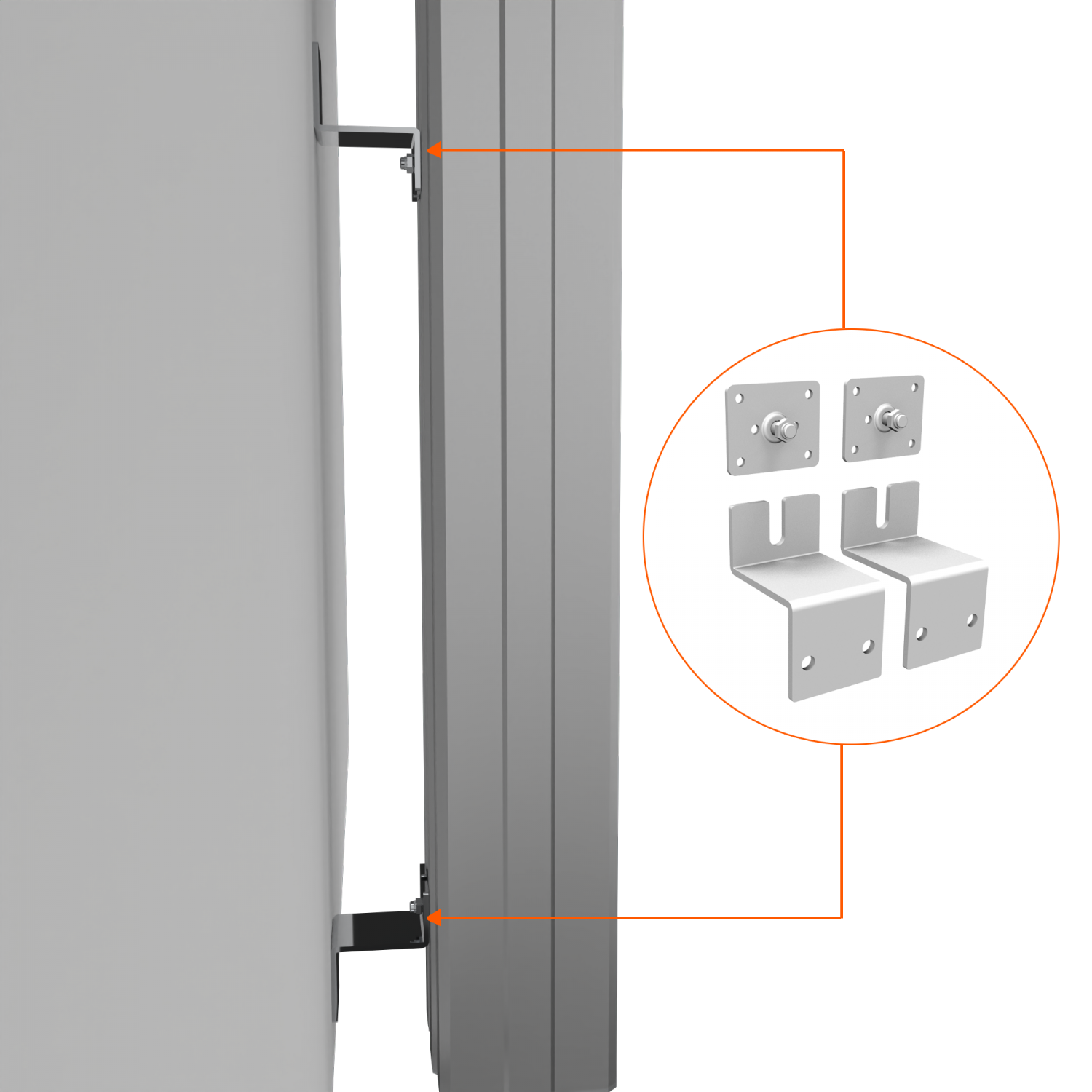

7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETANHVWLPBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.

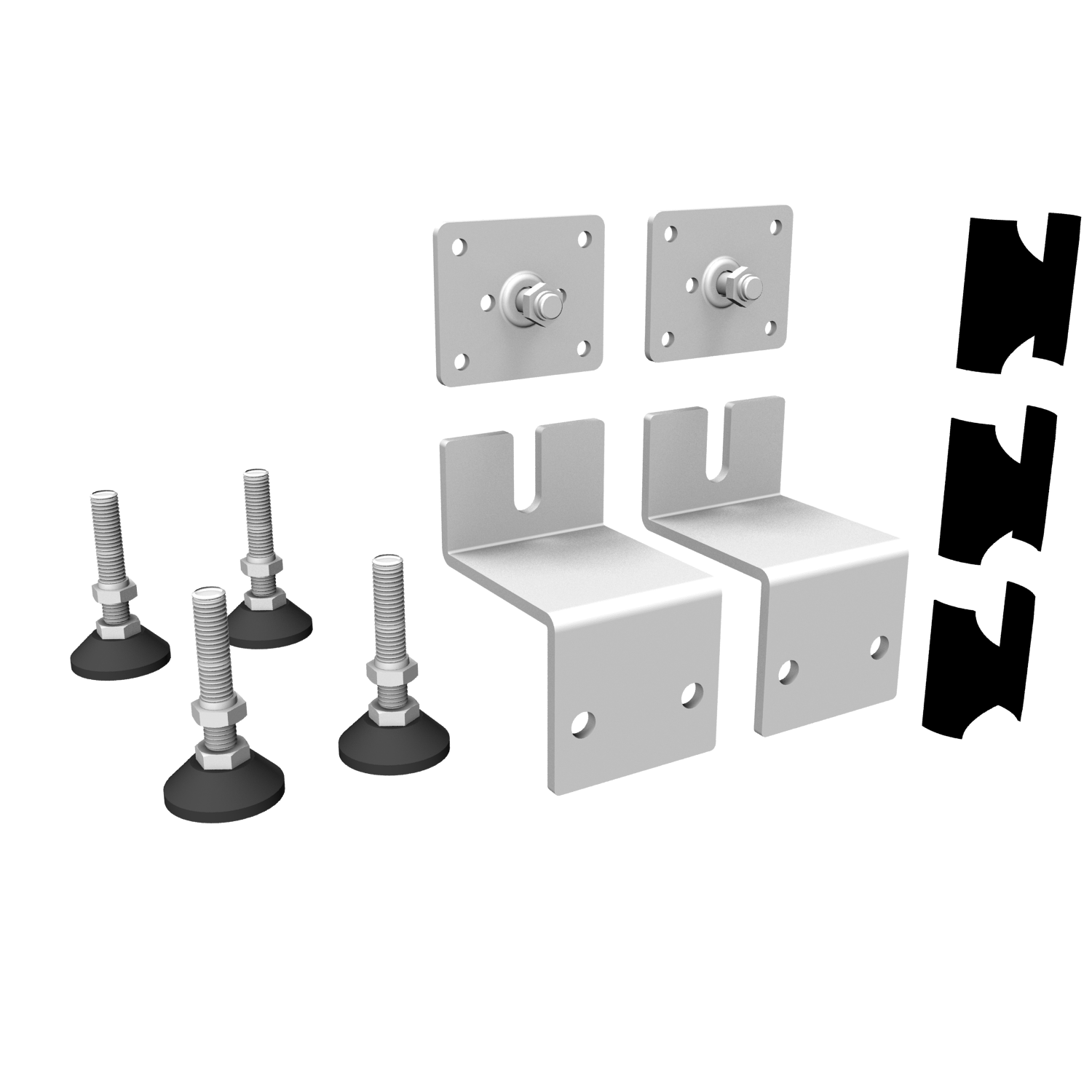

Wall mounting kit
Detail image Wall mounting kit SCETANHVWLPThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
