Height adjustable monitor wall mount, Lite Series

silver, with anti-collision, center to floor 930 - 1830 mm
Item number: RLI12090WK

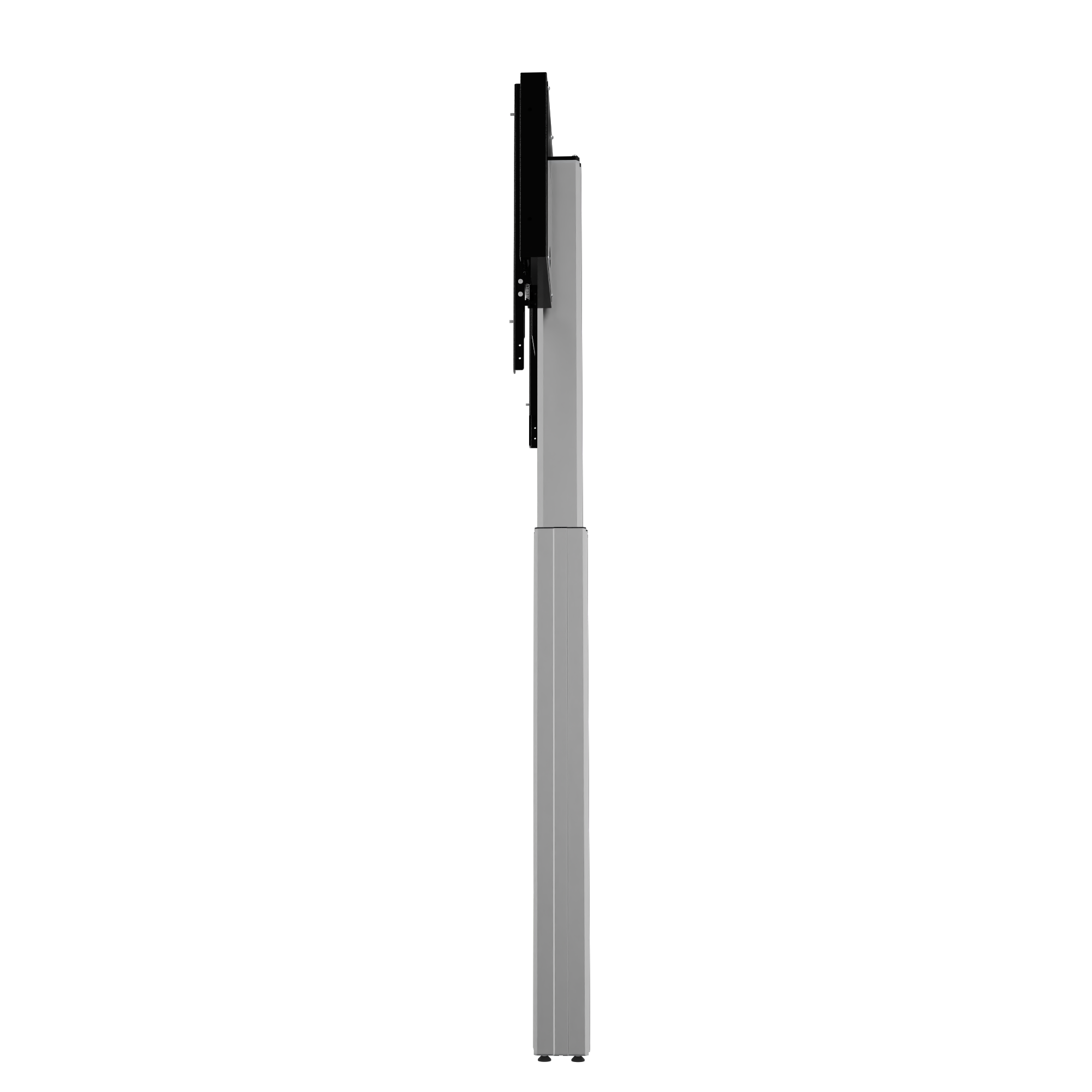

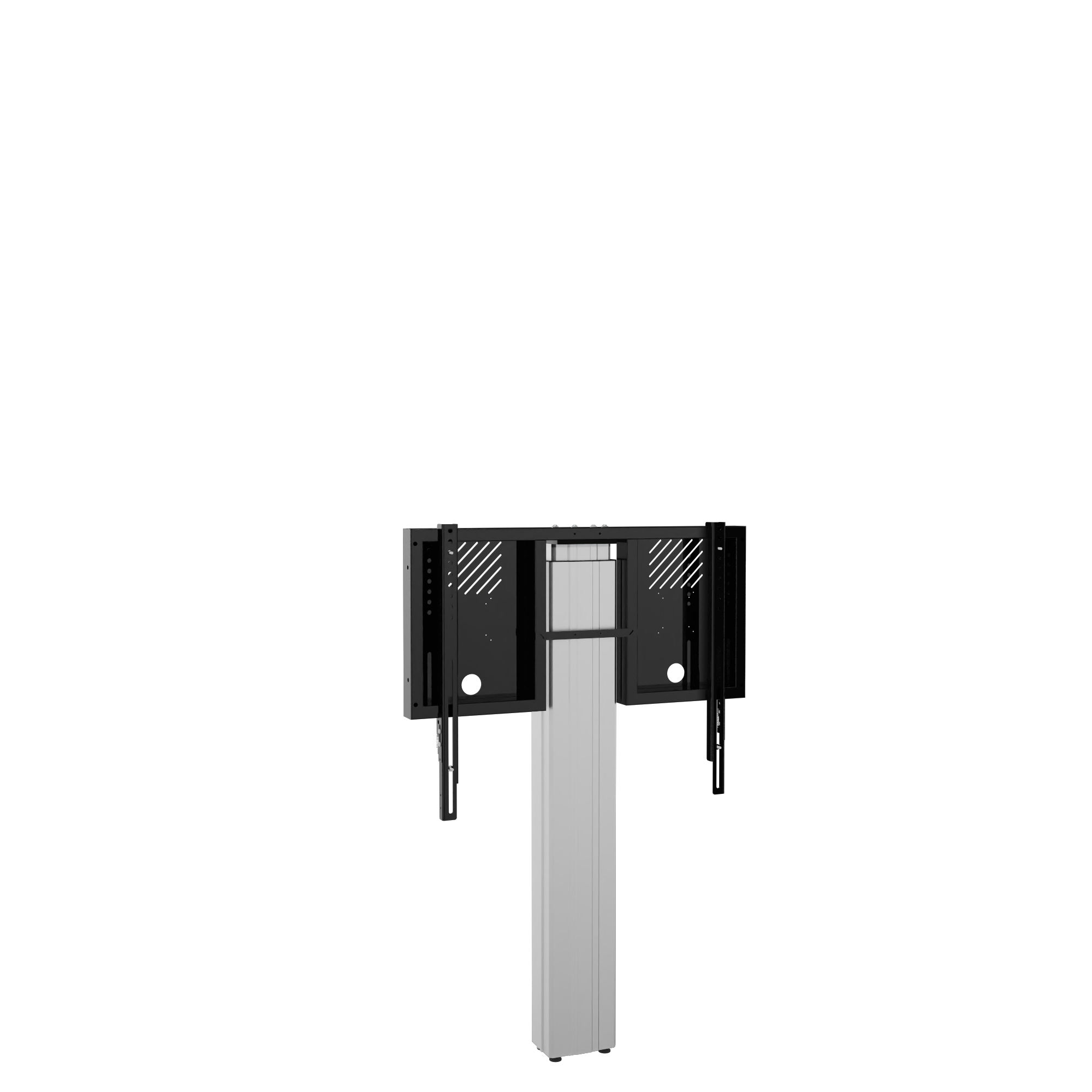

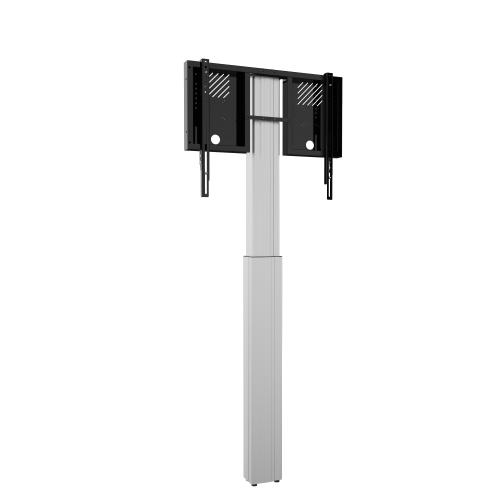

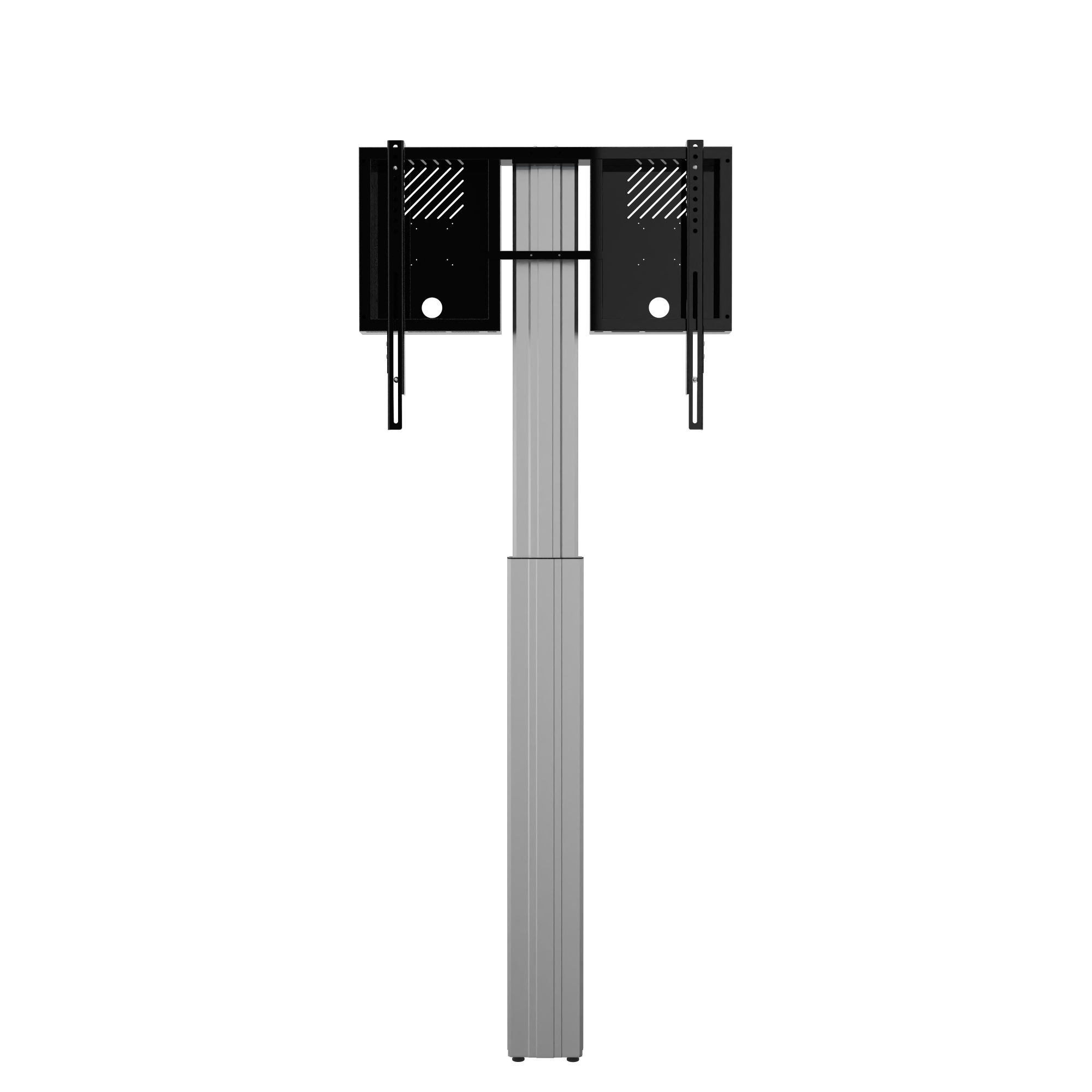

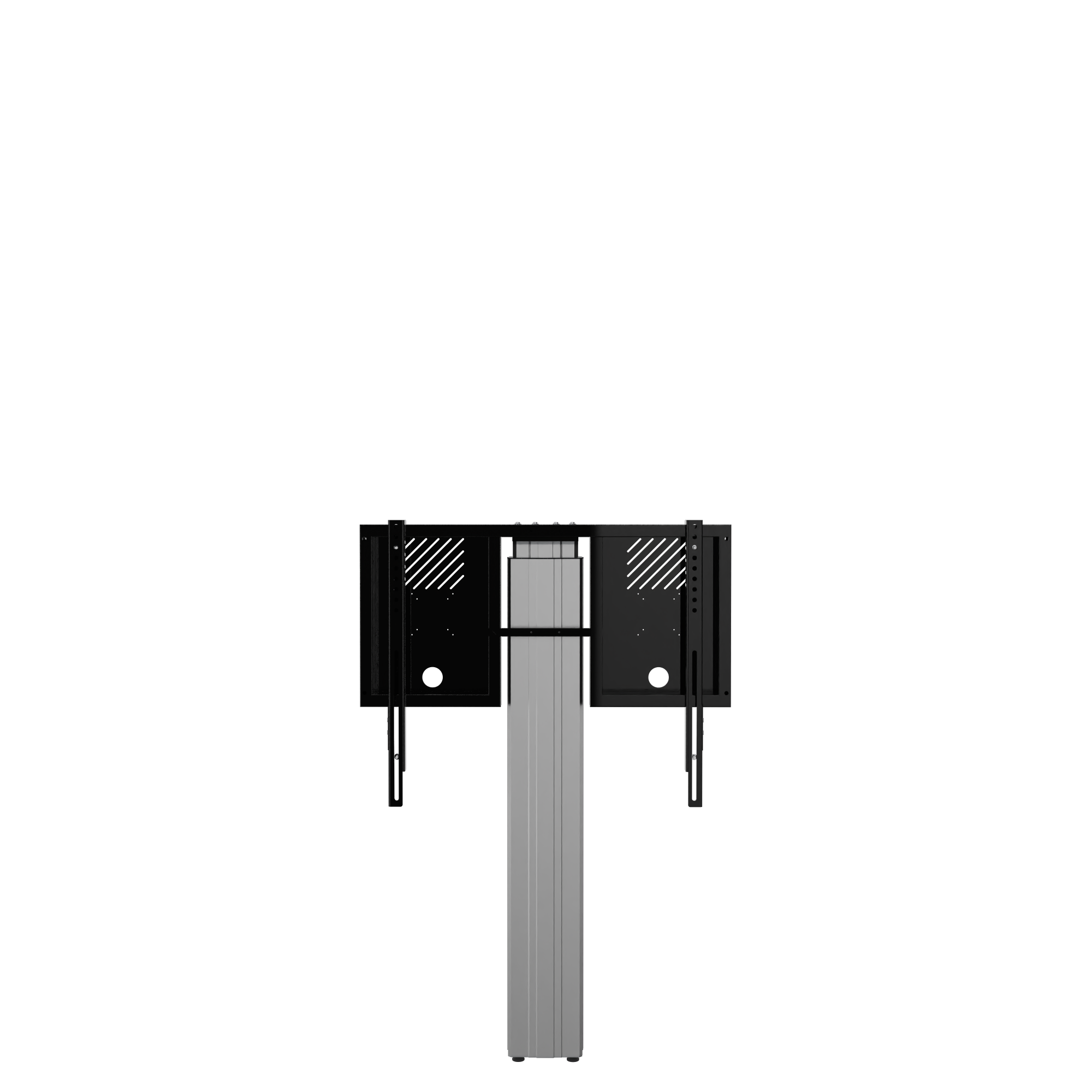

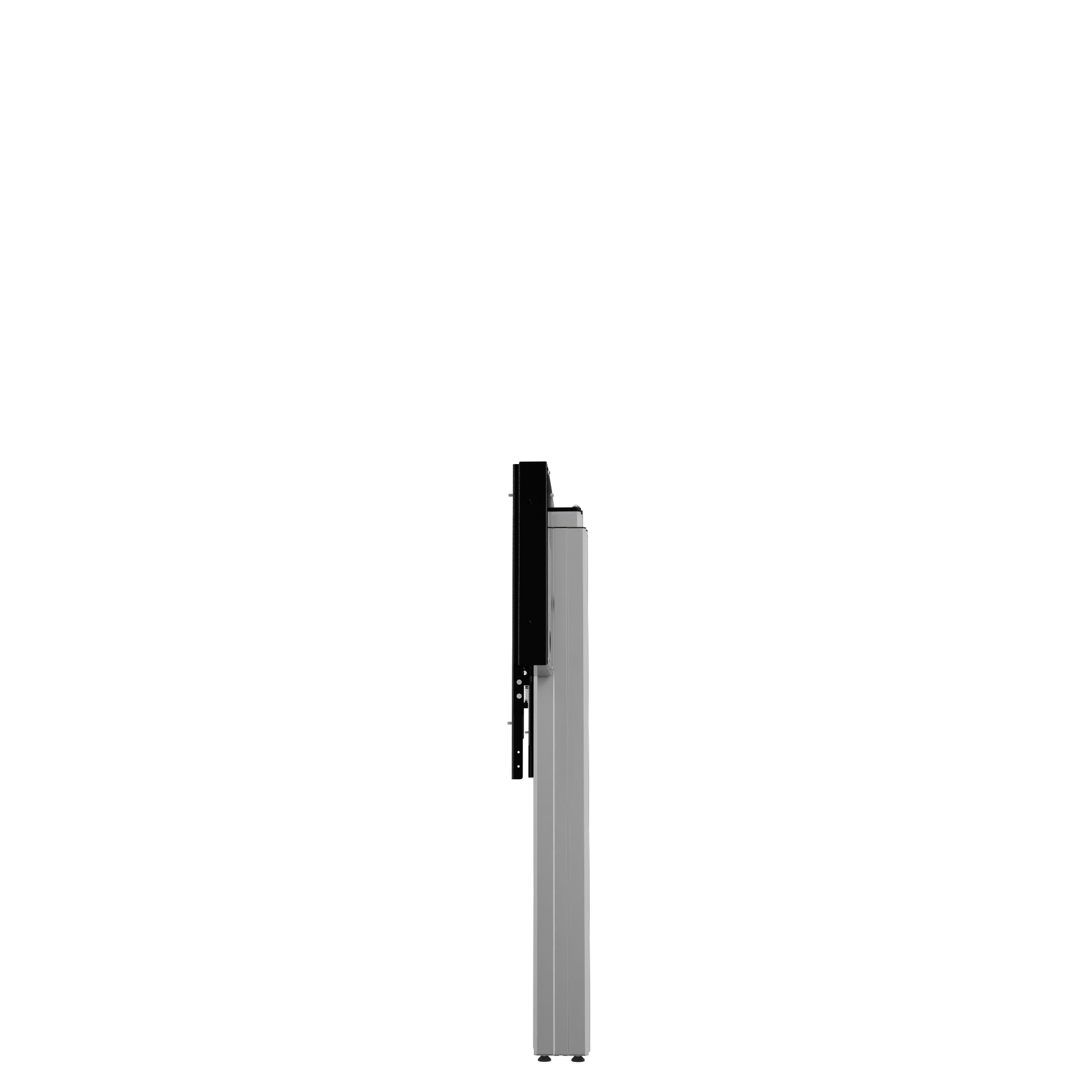

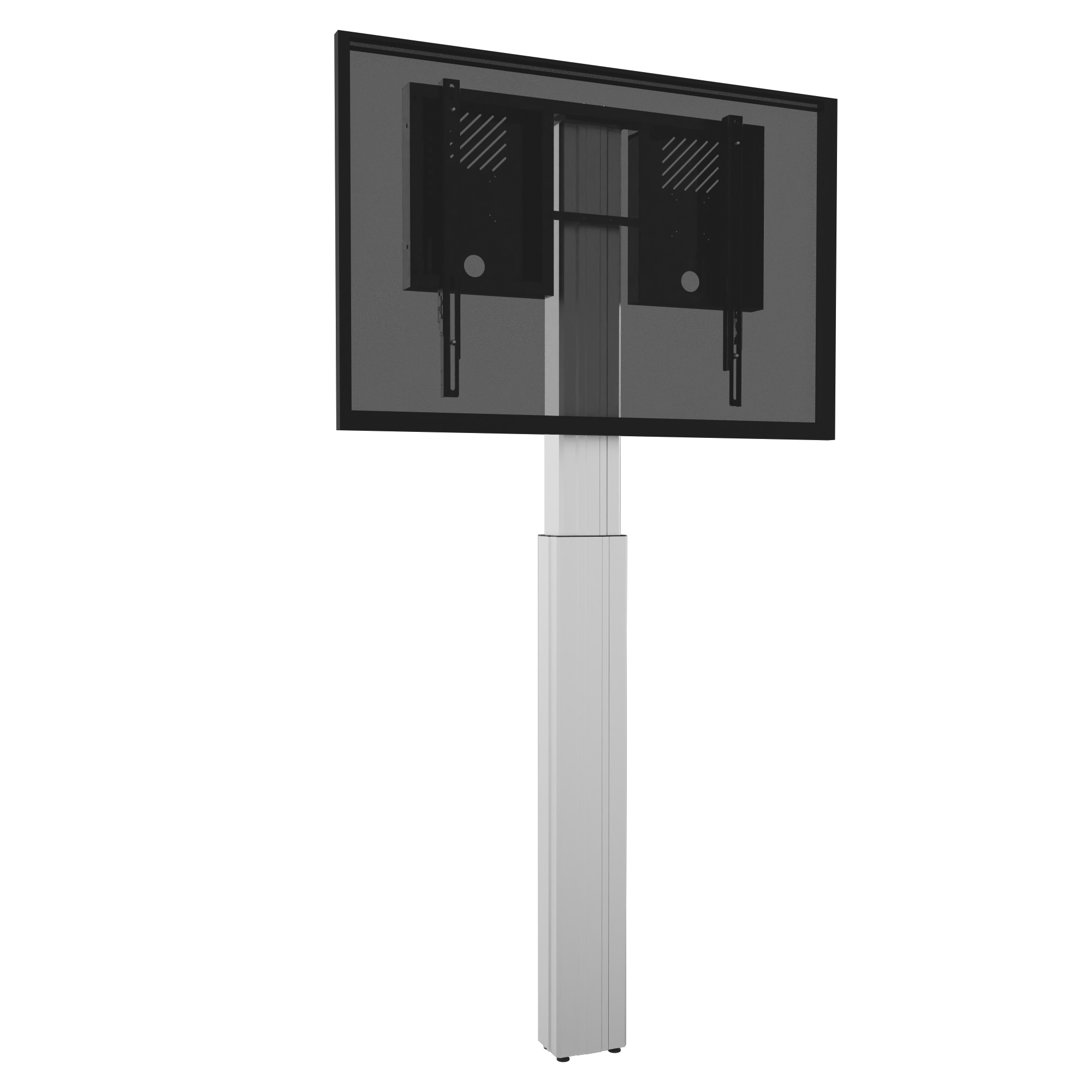

Product image Height adjustable monitor wall mount, Lite Series RLI12090WK
Product image Height adjustable monitor wall mount, Lite Series RLI12090WK-1 Product image Height adjustable monitor wall mount, Lite Series RLI12090WK-2 Product image Height adjustable monitor wall mount, Lite Series RLI12090WK-3 Product image Height adjustable monitor wall mount, Lite Series RLI12090WK-4 Product image Height adjustable monitor wall mount, Lite Series RLI12090WK-5 Product image Height adjustable monitor wall mount, Lite Series RLI12090WK-6 Product image Height adjustable monitor wall mount, Lite Series RLI12090WK-7

Product description

Motorized adjustable wall mount for 55”-86” (interactive) touch screen. The single-column, floor-to-wall design, guarantees maximum stability & safety.

The mount comes standard with a wired remote control, allowing the user to raise and lower the screen with a simple touch of the button.
The high-speed actuator has an unsurpassed speed of 1.85”/47mm per second.

Conen cares about classroom safety. The motorized mount features an anti-collision sensor that detects objects that are in the way during operation. If an obstruction is detected, the system stops and reverses the operational direction.

The RLI12090WK monitor mount also offers an extended 900mm/35.5” of smooth motorized height adjustment giving everyone, even those in early grades or in a wheelchair, to participate.

The integrated display mount allows for displays with maximum weight of 136kg/300 lbs. and a max. VESA 800x600 pattern.
Two “pull & release” locking brackets ensure quick and easy mounting of the monitor.

The unit comes disassembled and ships in two, courier-shippable, cartons.


Features

  • 90cm / 35.5” height adjustment
  • Anti-collision feature
  • Motor speed 1.85” / 47mm per second
  • For displays up to 86”
  • Max. display weight: 136kg / 300 lbs.
  • VESA pattern max. 800x600. Bracket included
  • 4 Levelling feet + 2 wall mounting brackets for maximum stability

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberRLI12090WK
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all55" - 86"
Vertical travel90 cm

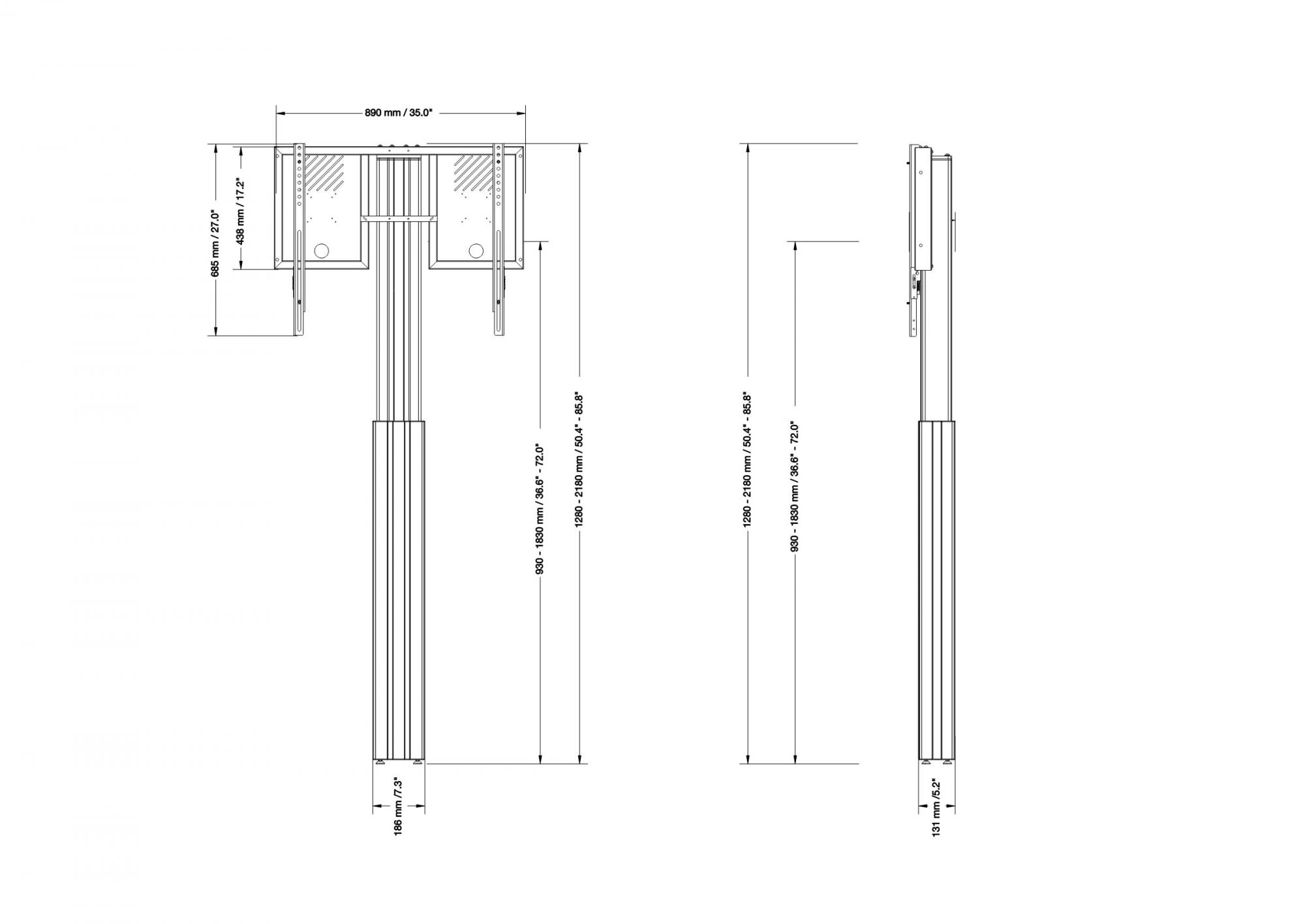

Center to floor distance 930 mm - 1830 mm36.6" - 72"
Load capacity136 kg 299.8 lbs
Width 890 mm35"
Height 1280 mm - 2180 mm50.4" - 85.8"
Depth 166 mm6.5"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Packages Package dimensions WxHxD Package weight
AFSCETARLI895 x 65 x 485 mm / 35.2 x 2.6 x 19.1"14 kg / 30.9 lbs
CCEL12090WK1390 x 195 x 245 mm / 54.7 x 7.7 x 9.6"27,6 kg / 60.8 lbs
Total weight 41,6 kg / 91.7 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 RLI12090WKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel.
Quick snap lock
Detail image Quick snap lock RLI12090WKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.

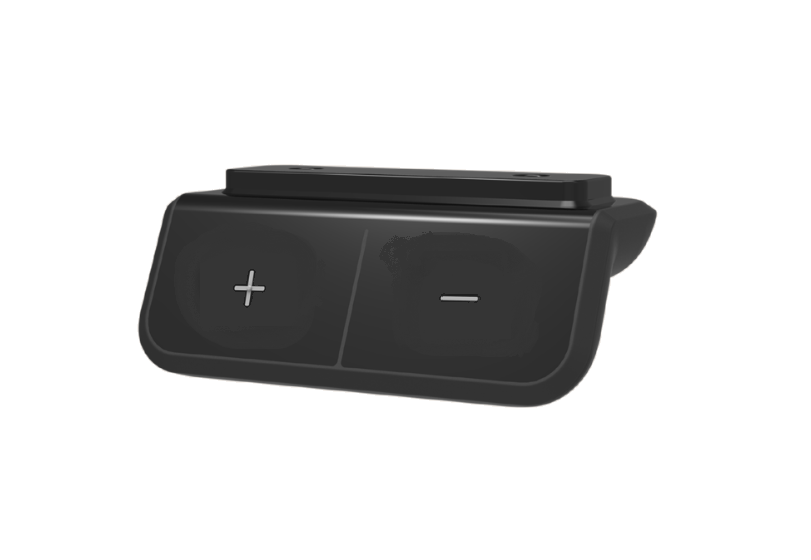

Remote control of height adjustment
Detail image Remote control of height adjustment RLI12090WKThe electrically height-adjustable tv & monitor stands come standard with a wired remote control. With two buttons, the monitor stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen monitors.
Four leveling feet
Detail image Four leveling feet RLI12090WKThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets RLI12090WKBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit

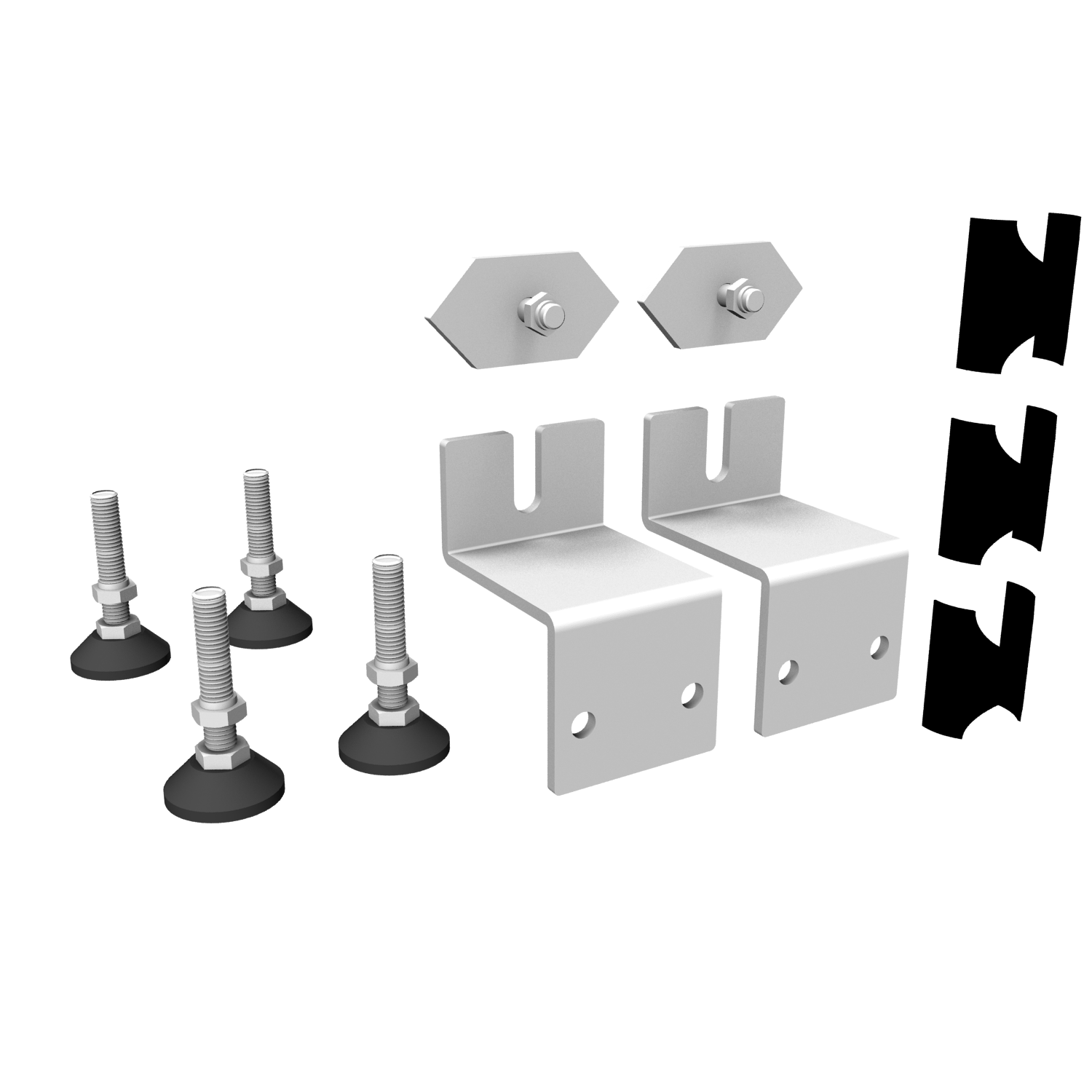

Detail image Wall mounting kit RLI12090WKThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
