Display stand for wall mounting - "MOW 150

Column: black, incl. wall spacers
Item number: 83502035

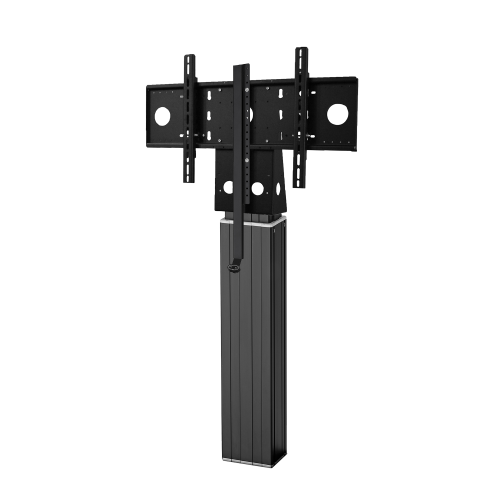

Product image Display stand for wall mounting - "MOW 150 83502035
Product image Display stand for wall mounting - "MOW 150 83502035-1

Product description

The motorized wall mount, MOW 150, is the ideal mount so that you can safely install very large and heavy displays. The mounting is suitable for both solid stone walls and lightweight walls.

The standard version of our MOW 150 includes a mount VESA 100×100 - 800×600.

An additional height grid in the column attachment makes it possible to vary the height by 20 cm. In the column top there is an integrated shelf on the back to hold e.g. a mini-PC.
The wall mounting is done with 2 angles made of metal (installation depth approx. 7 cm). 4 floor leveling screws for leveling uneven floors are included.

The motorized lifting column is made of anodized aluminum and is also available with a black column. The VESA mount is powder coated in RAL 9005 deep black, fine structure.


Features

  • Display approx. 50 cm motorized movable
  • Made in Germany
  • For a display up to max. 98"
  • Load capacity up to max. 130 kg
  • Barrier-free
  • Wall mounting

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon single display
Single display
Icon maximum load
Max. load
286.6 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Configuration

Item number83502035
Vesa horizontal100 mm - 800 mm
Vesa vertical100 mm - 600 mm
Frame for all98" max.
Vertical travel50 cm
Center to floor distance 1080 mm - 1580 mm42.5" - 62.2"
Load capacity130 kg 286.6 lbs
Width 210 mm8.3"
Height 1080 mm - 1780 mm42.5" - 70.1"
Depth 230 mm9.1"
Weight 38 kg83.8 lbs
Base colorRAL 9005 deep black
