Screen with motor - "Congress-S

W/H: 600x338 cm, with motor
Item number: 20123360GS
Product image Screen with motor - "Congress-S 20123360GS
Product image Screen with motor - "Congress-S 20123360GS-1

Product description

The Congress-S is an extremely high-quality projection screen, which is ideal for use in the field of congresses and events. It is characterized by its special sizes up to 10 meters and its technical equipment.

Depending on the format of the projection screen, the Congress-S is manufactured up to W 600 x H 400 cm in a robust sheet steel housing in RAL 9016 Traffic White (15 x 15 or 20 x 20 cm), from a format larger than 600 cm width in a galvanized housing (30 x 30 or 40 x 40 cm). Other colors are optionally possible according to RAL Classic, please contact us!

The projection screen Congress-S is designed for ceiling mounting by mounting brackets on the outer sides of the housing. Up to a size of W 600 x H 400 cm (housing 15 x 15 or 20 x 20 cm) there is a revision possibility without dismantling the housing. From a size larger than 600 cm width (housing 30 x 30 or 40 x 40 cm) this revision possibility is omitted.

Important note on DIN 56950-4 - All projection screens over 5 meters are equipped with a safety catch and a testable safety limit switch as standard. The built-in switch meets the requirements demanded in stage technology. Thus, all necessary criteria for the tendering and testing of mechanical equipment in operating facilities are already fulfilled in our standard design.

incl. safety gear and safety limit switch.


Features

  • formats up to 1.000 x 600 cm available
  • for ceiling mounting
  • wall bracket optionally available
  • pre-assembly frame up to 600 x 400 cm optionally available
  • Screen surface Polar GS - flame retardant, meets the requirements of DIN 4102 - B1
  • Construction DIN 56950-4: 2015 Safety requirements and tests for prefabricated picture walls

Icon ceilingmounted system
Ceiling mounted

Configuration

Item number20123360GS
Image size 6000 mm - 3380 mm236.2" - 133.1"
Weight 119 kg262.4 lbs
Packages Package dimensions WxHxD Package weight
20123360GS6500 x 250 x 250 mm / 255.9 x 9.8 x 9.8"219 kg / 482.8 lbs

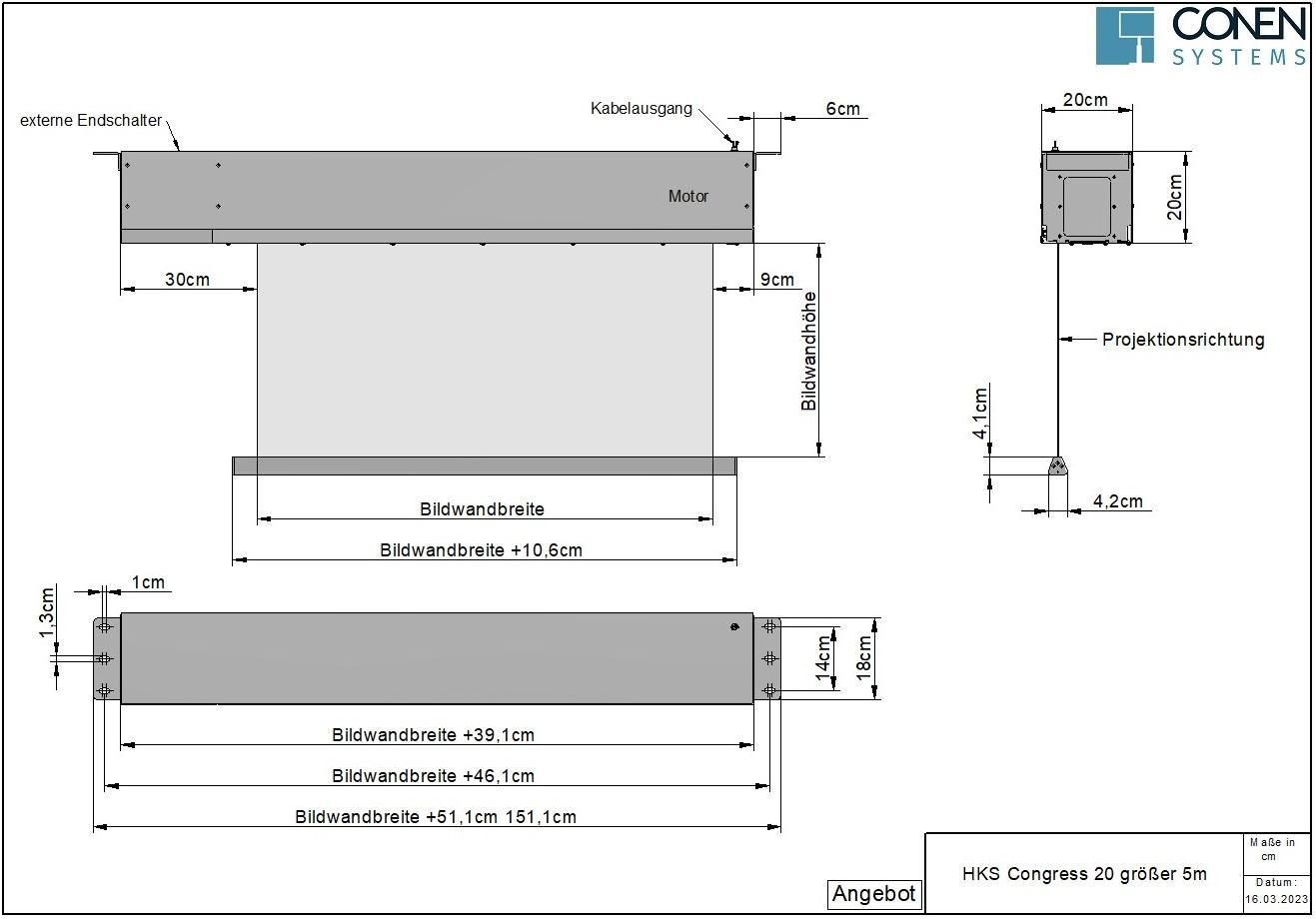

technical drawing
20123360GS
Image PDF download Image show PDF
