MOW-S flex

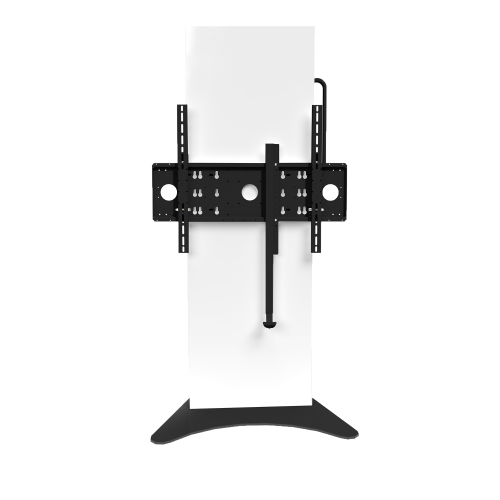

Display stand with base plate and motorized height adjustment to accommodate displays up to 98".
Item number: 83502013
Product image MOW-S flex 83502013
Product image MOW-S flex 83502013-1 Product image MOW-S flex 83502013-2 Product image MOW-S flex 83502013-3 Product image MOW-S flex 83502013-4 Product image MOW-S flex 83502013-5 Product image MOW-S flex 83502013-6 Product image MOW-S flex 83502013-7 Product image MOW-S flex 83502013-8 Product image MOW-S flex 83502013-9 Product image MOW-S flex 83502013-10

Product description

The MOW-S flex complements our MOW series with two free-standing display stands. The high-quality and well thought-out design makes it easy to mount the display and media technology. The MOW-S flex is available as a motorized height-adjustable version with a 50 cm stroke or in a version where the display can be hung in 6 grid points.
available.

Media technology furnishing is also made easier by the color-customizable design. This is because the MOW-S flex not only focuses on functionality, but also on visual presence.

Thanks to the mobile V-base and the stable base plate, the MOW-S flex display stands are barrier-free.


Features

  • Made in Germany

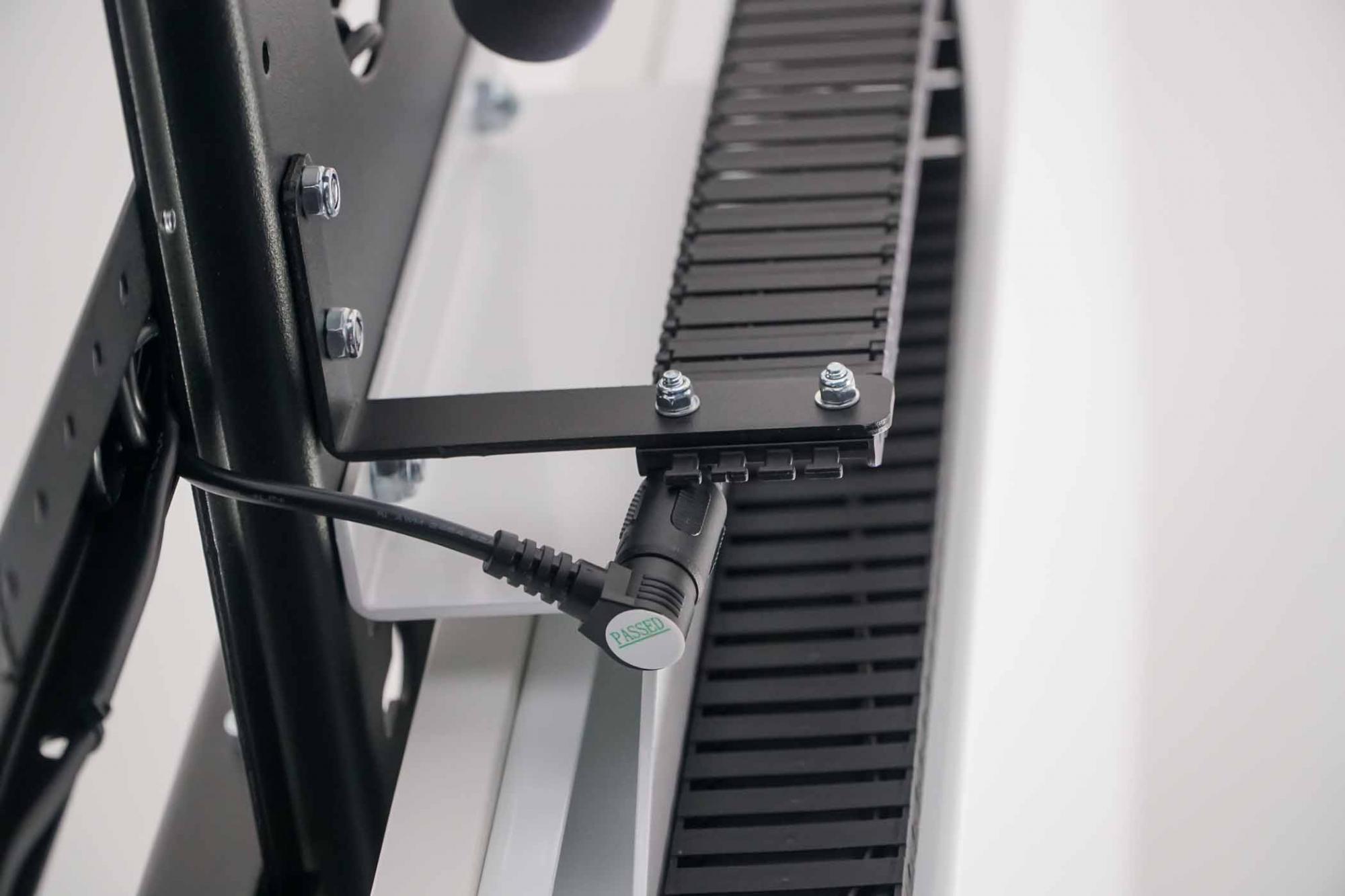

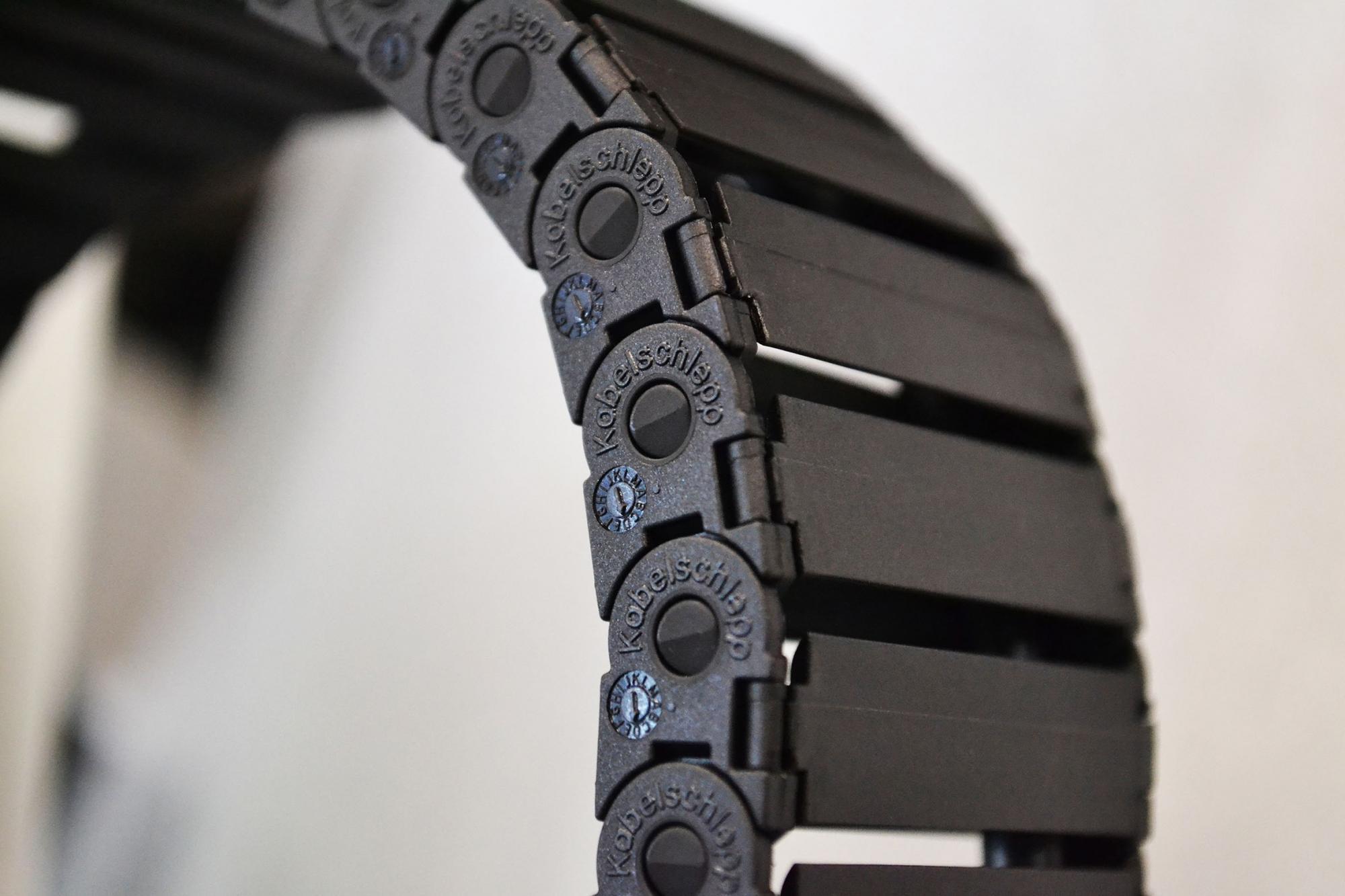

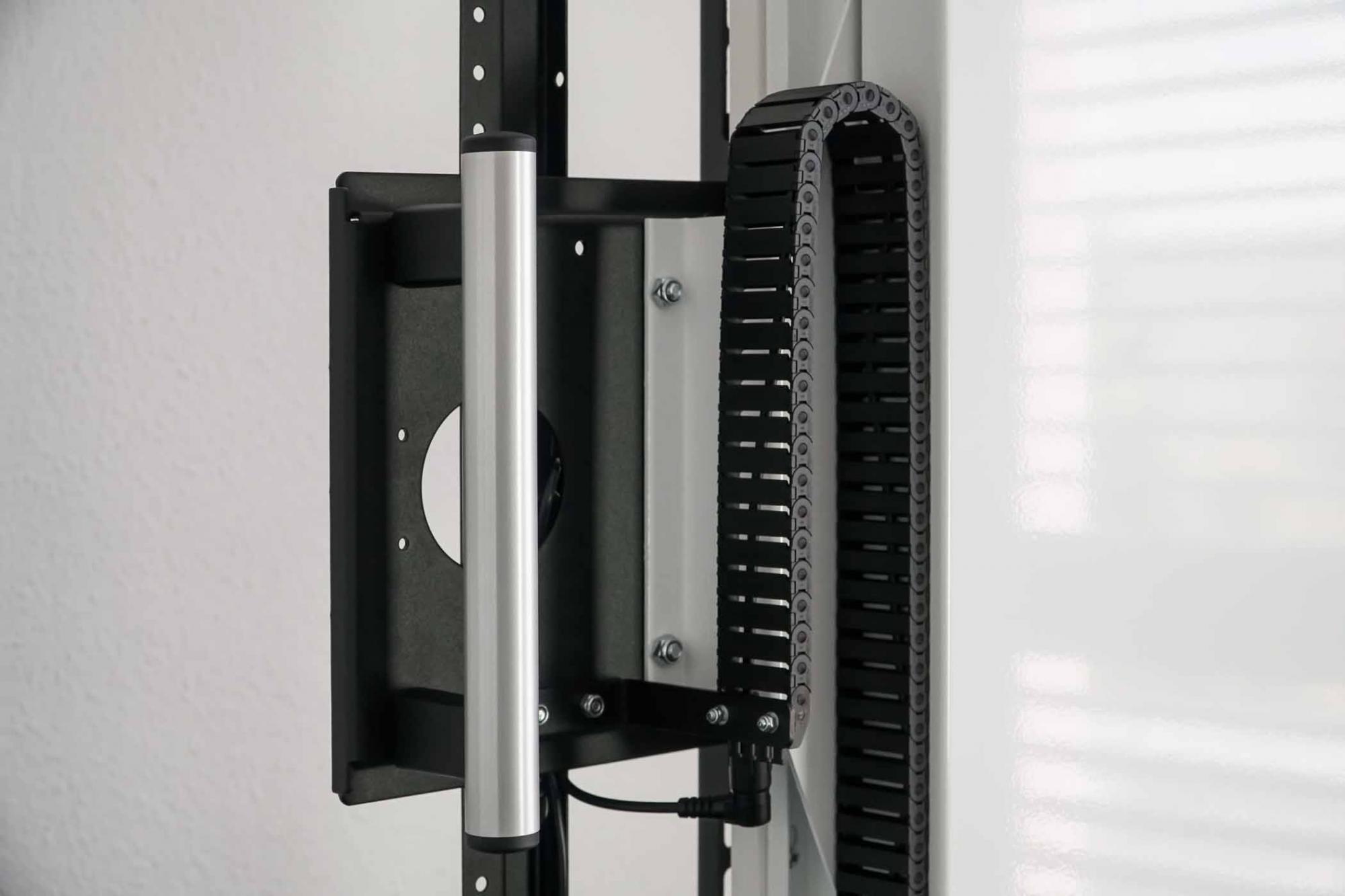

  • Integrated cable management
  • Barrier-free
  • Load capacity up to max. 100 kg
  • Freely selectable: mobile V-foot or stable base plate
  • Can be customized visually

Icon display mounts
Display mount
Icon platform stand
Free-standing
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon maximum load
Max. load
220.5 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Configuration

Item number83502013
Vesa horizontal100 mm - 800 mm
Vesa vertical100 mm - 600 mm
Frame for all86" max.
Vertical travel50 cm
Center to floor distance 1040 mm - 1540 mm40.9" - 60.6"
Load capacity100 kg 220.5 lbs
Width 490 mm19.3"
Height 1780 mm70.1"
Depth 110 mm4.3"
Weight 118 kg260.1 lbs
Packages Package dimensions WxHxD Package weight
835020131200 x 1950 x 800 mm / 47.2 x 76.8 x 31.5"145 kg / 319.7 lbs
