Mobile TV cabinet with electric height adjustment "VSM electric"

Column silver anodized, stroke 50 cm, incl. collision protection ,TV lowboard
Item number: SCETASBNK
Product image Mobile TV cabinet with electric height adjustment "VSM electric" SCETASBNK
Product image Mobile TV cabinet with electric height adjustment "VSM electric" SCETASBNK-1 Product image Mobile TV cabinet with electric height adjustment "VSM electric" SCETASBNK-2 Product image Mobile TV cabinet with electric height adjustment "VSM electric" SCETASBNK-3 Product image Mobile TV cabinet with electric height adjustment "VSM electric" SCETASBNK-4 Product image Mobile TV cabinet with electric height adjustment "VSM electric" SCETASBNK-5 Product image Mobile TV cabinet with electric height adjustment "VSM electric" SCETASBNK-6 Product image Mobile TV cabinet with electric height adjustment "VSM electric" SCETASBNK-7 Product image Mobile TV cabinet with electric height adjustment "VSM electric" SCETASBNK-8

Product description

Electrically height-adjustable TV cabinet.

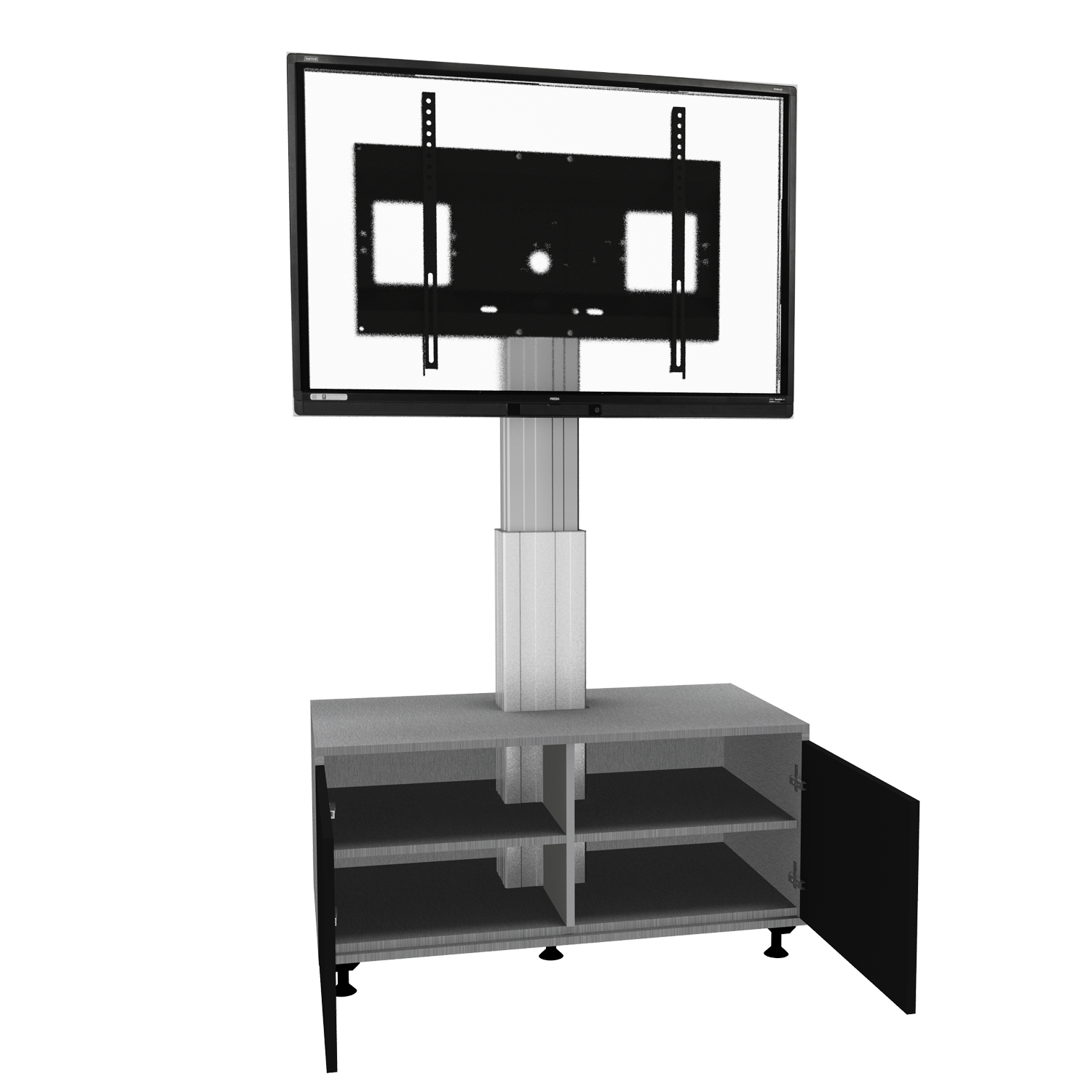

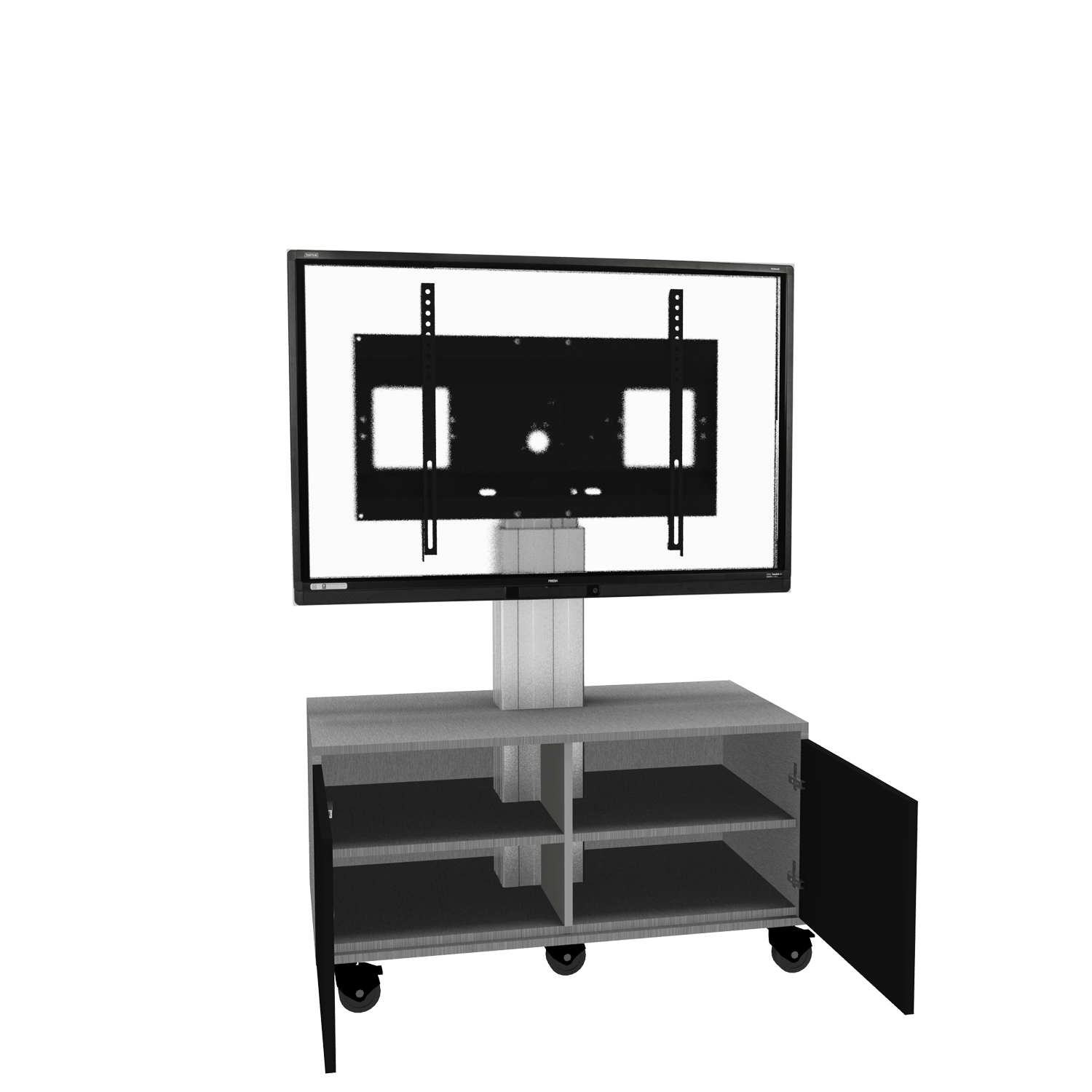

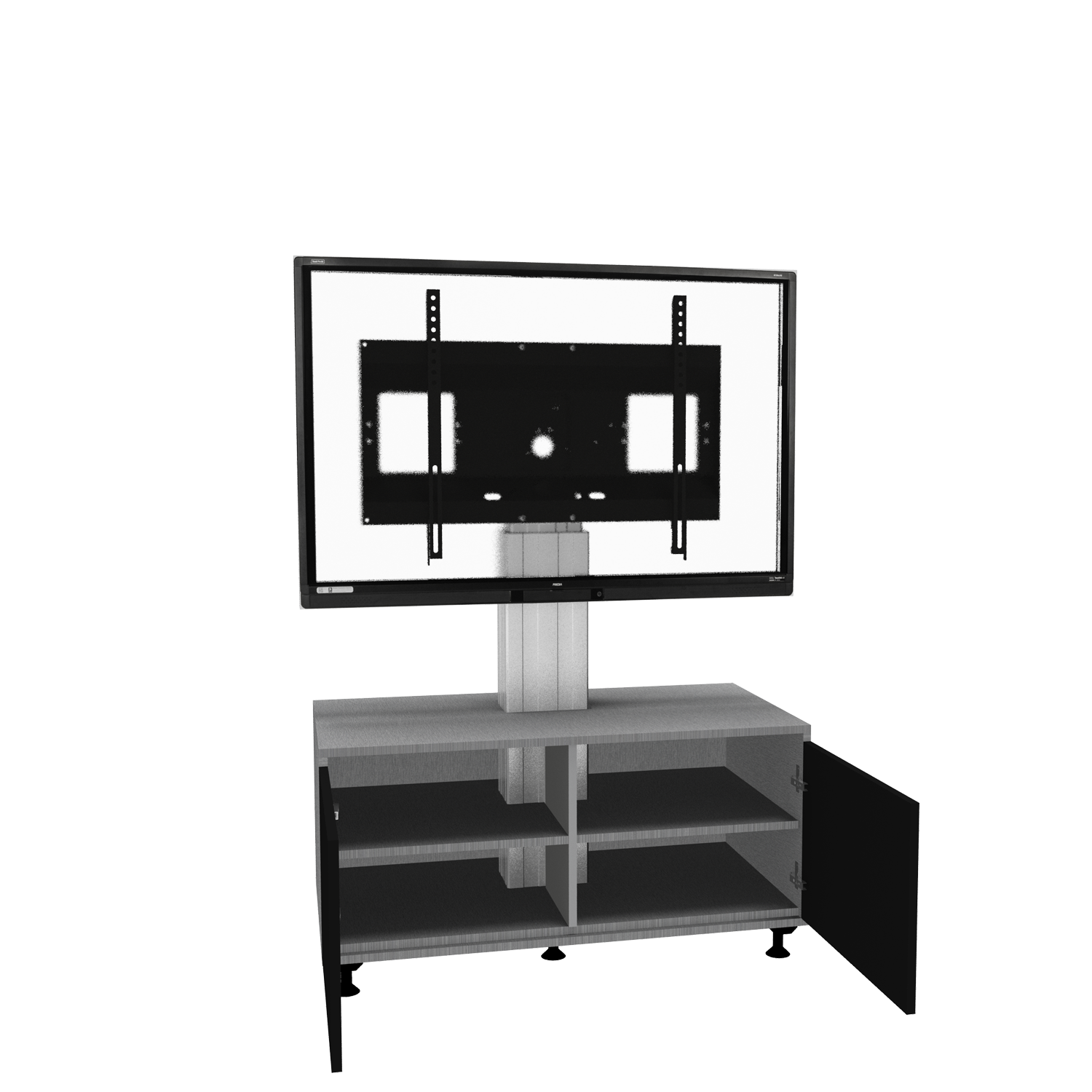

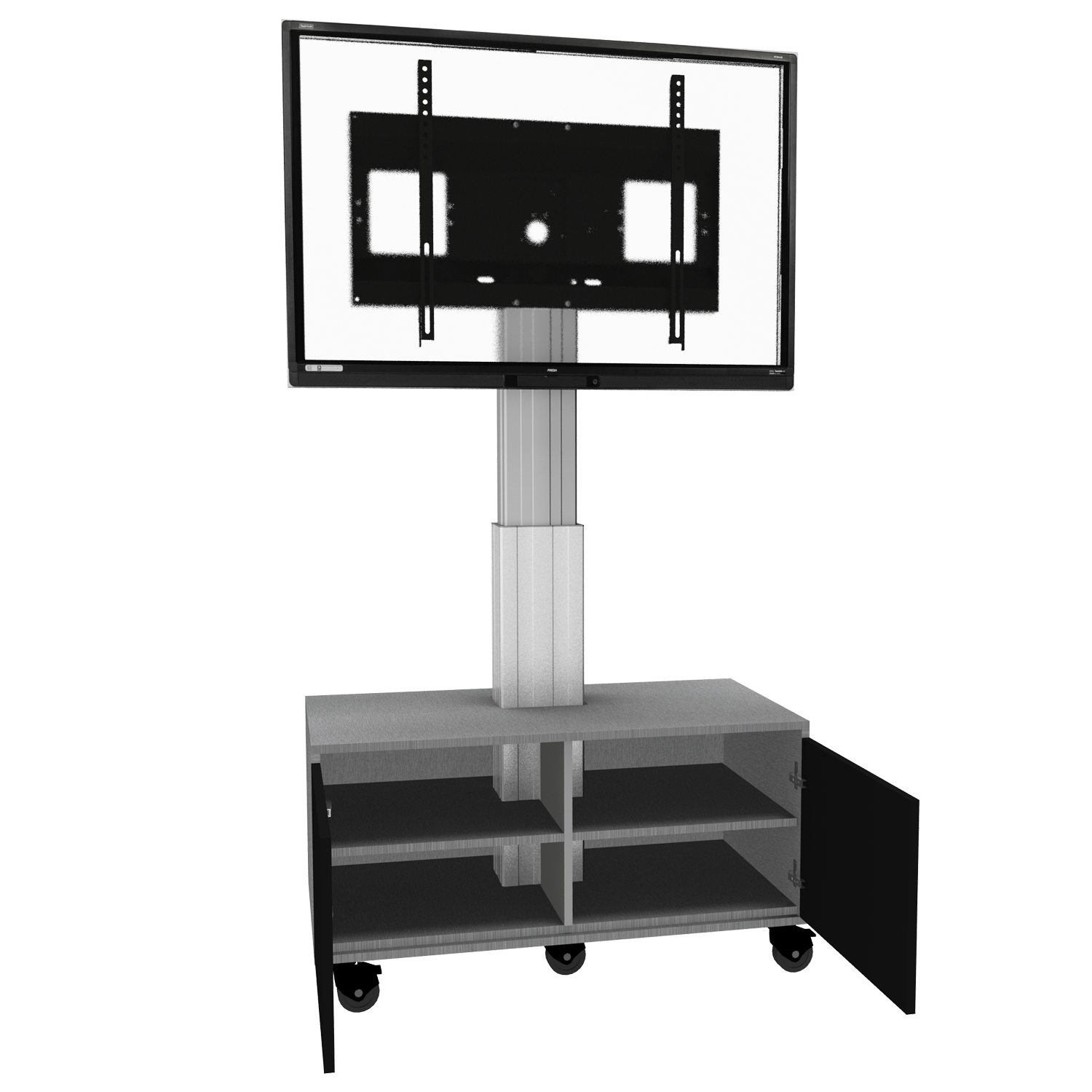

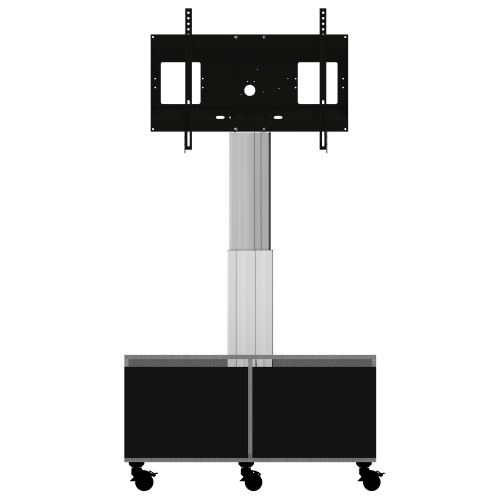

TV cabinet with two hinged doors at the front and two adjustable shelves, one on the right and one on the left. Two cable apertures ensure easy cable management. The TV lowboard comes with 6 trumpet feet and 6 rubberized smooth-running castors, two of which are lockable. Use the trumpet feet if you want to position your display stand in front of a wall (no wall connection required) or freely in the room. Or opt for maximum flexibility and use the 6 rubberized smooth-running castors. The TV cabinet is supplied in brushed aluminum decor including two hinged doors in black.

The SCETASBNK comes with an electrically height-adjustable pylon column with a 50 cm stroke, including collision protection.

The monitor stand accommodates displays from 55 - 86 inches screen diagonal, with VESA 200 x 200 to 800 x 600 and up to a maximum of 136 kg.

The system comes disassembled in a packaging unit.


Features

  • Mobile TV cabinet for use with displays up to 86 inches screen diagonal
  • Easy display mounting thanks to bracket with quick-release mounting rails
  • Display holder takes cable management into account
  • The motor system is securely installed inside the aluminum lifting column and provides a 50 cm stroke, including collision protection
  • A cable control unit is included in the scope of delivery
  • The TV cabinet comes with two adjustable shelves, 6 trumpet feet and 6 castors with a diameter of 75 mm as standard

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon platform stand
Free-standing
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberSCETASBNK
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all55" - 86"
Vertical travel50 cm
Center to floor distance 1357 mm - 1857 mm53.4" - 73.1"
Load capacity136 kg 299.8 lbs
Width 893 mm35.2"
Height 1685 mm - 2185 mm66.3" - 86"
Depth 580 mm22.8"
Weight 87,7 kg193.3 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Base colorRAL 9005 deep black

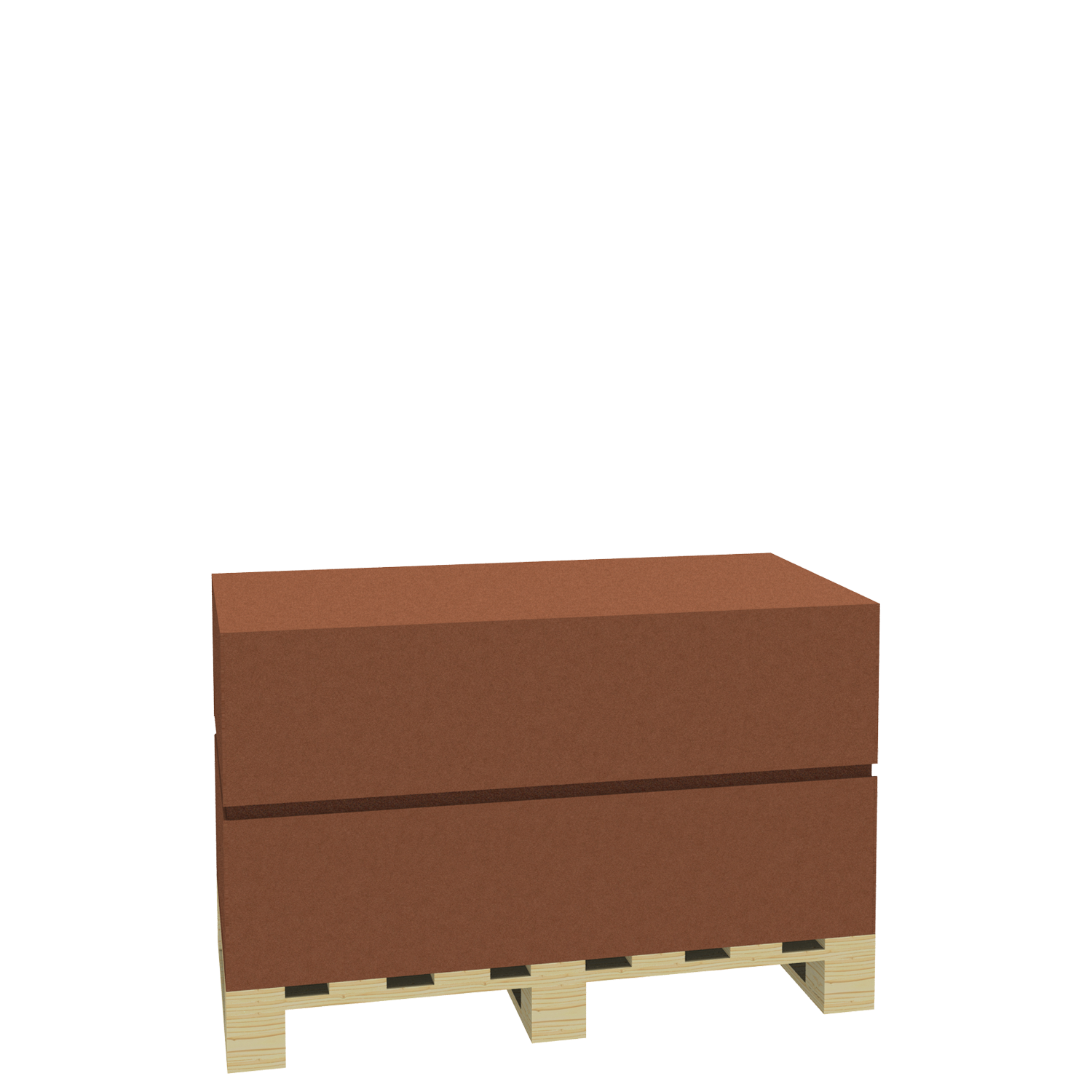

Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"14 kg / 30.9 lbs
Total weight 14 kg / 30.9 lbs
