Media column for mounting displays up to 98" "Smart-M"

Mediastele Smart-M
Item number: 87000240

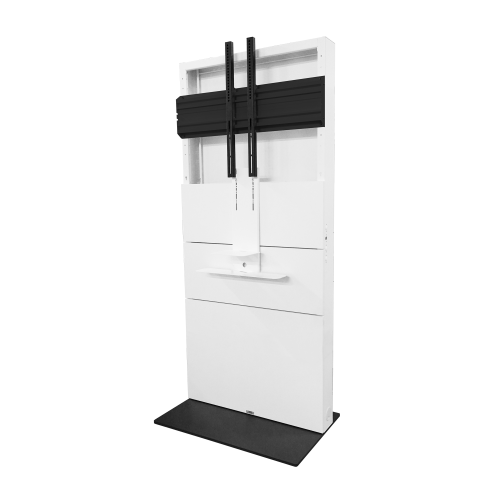

Product image Media column for mounting displays up to 98" "Smart-M" 87000240
Product image Media column for mounting displays up to 98" "Smart-M" 87000240-1

Product description

Mediastele Smart-M: elegance meets performance

Discover a new dimension in presentation technology with the Mediastele Smart-M, which combines design and functionality to perfection. The elegant Mediastele Smart-M impresses with its stylish appearance and a slim, slender column that securely holds displays up to 98 inches in size and weighing up to 100 kg.

Features that inspire:
Stylish design: the clean and modern appearance of the Mediastele Smart-M blends seamlessly into any environment. The slim design column effortlessly supports large screens and enhances any meeting or presentation.
High-quality materials:
The body in the standard version shines in RAL 9016 traffic white, while the base plate in RAL 7016 anthracite gray offers an attractive contrast. The lower front panel is presented in elegant platinum white decor.
Individual customization:
Customize the Mediastele Smart-M to your personal preferences. The powder coating can be individually designed according to the RAL Classic color system to match your interior or corporate design.
Wide range of equipment options:
With the Mediastele Smart-M, you have a wide range of equipment options at your disposal, providing perfect support for your next meeting.

Rely on the Mediastele Smart-M to enrich your rooms with a combination of elegance, functionality and individual adaptability.


Features

  • Made in Germany
  • Display up to max. 98"
  • Integrated cable management
  • The height of the aluminum holder for a display can be adjusted from 152 - 172 cm, so the lower edge is approx. 120 cm when using a 98" display
  • Load capacity up to 100 kg

Icon display mounts
Display mount
Icon platform stand
Free-standing
Icon fixed height
Fixed height
Icon single display
Single display
Icon maximum load
Max. load
220.5 lbs
Icon maximal VESA
Max. Vesa
600 x 800
Item number87000240
Vesa horizontal200 mm - 600 mm
Vesa vertical200 mm - 800 mm
Load capacity100 kg 220.5 lbs
Width 850 mm33.5"
Height 1910 mm75.2"
Depth 142 mm5.6"
Weight 106 kg233.7 lbs
Packages Package dimensions WxHxD Package weight
870002401200 x 2010 x 800 mm / 47.2 x 79.1 x 31.5"130 kg / 286.6 lbs
Product sheet DE
87000240
Image PDF download Image show PDF
Product sheet EN
87000240
Image PDF download Image show PDF

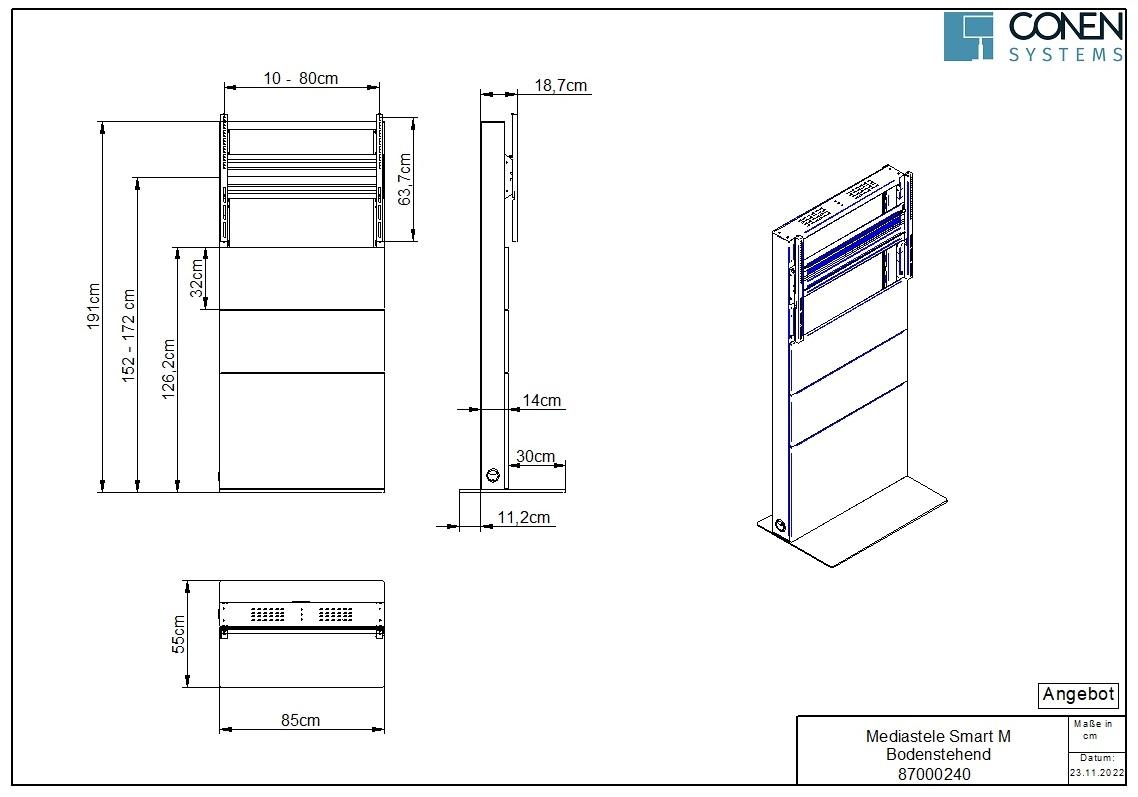

technical drawing
87000240
Image PDF download Image show PDF
