Electrically height-adjustable display stand with 50 cm stroke

Column black anodized, incl. collision protection center display 98.8 - 148.8 cm, base plate
Item number: SCETAPLBK

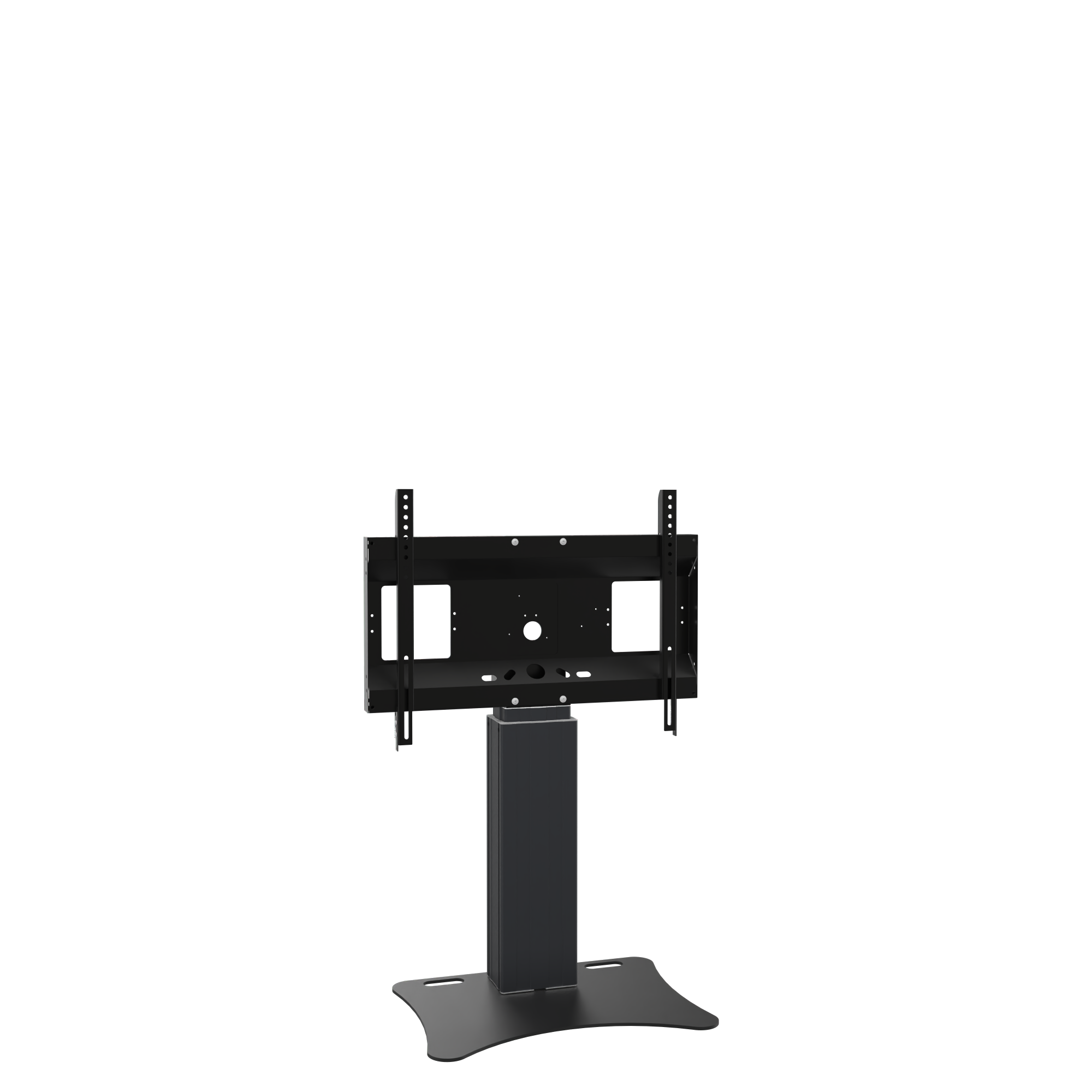

Product image Electrically height-adjustable display stand with 50 cm stroke SCETAPLBK
Product image Electrically height-adjustable display stand with 50 cm stroke SCETAPLBK-1 Product image Electrically height-adjustable display stand with 50 cm stroke SCETAPLBK-2 Product image Electrically height-adjustable display stand with 50 cm stroke SCETAPLBK-3

Product description

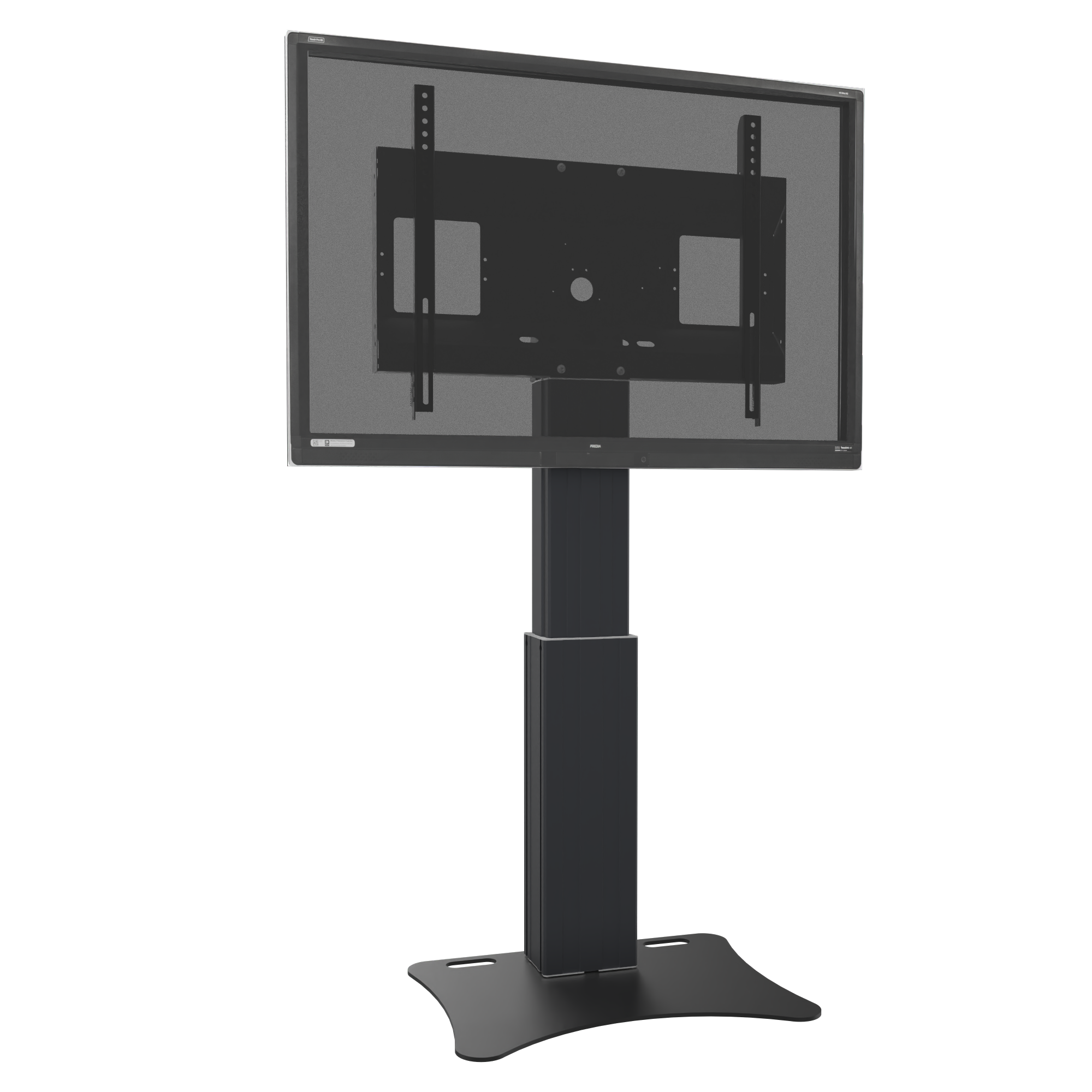

Electrically height-adjustable display stand for 55"-100" (interactive) flat-panel displays. Suitable for wall mounting.

The SCETAPLBK is suitable for holding displays with a screen diagonal of up to 100". The system includes a sturdy frame for holding the display with integrated cable management and two suspension rails with quick-release fasteners for quick and easy display mounting.

The SCETAPLB display stand comes with a pylon column with a 50 cm stroke, including collision protection.

An 8 mm thick steel plate is attached under the pylon column. The system can be placed free-standing in the room or mounted on a lightweight wall. Recesses/handles in the base plate facilitate handling. The plate is plastic powder-coated in black.

The system comes disassembled in three packages and can be shipped by courier service.


Features

  • Stable frame for displays up to 100"
  • incl. collision protection
  • Quick-snap fastener for easy display mounting
  • VESA, max. 800 x 600
  • Integrated cable management
  • 50 cm electrically height-adjustable
  • Base plate and two wall mounting brackets (7 cm wall distance) included in delivery
Request a quotation!
Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon platform stand
Free-standing
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbsIcon maximal VESA
Max. Vesa
800 x 600
Item numberSCETAPLBK
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Vertical travel50 cm

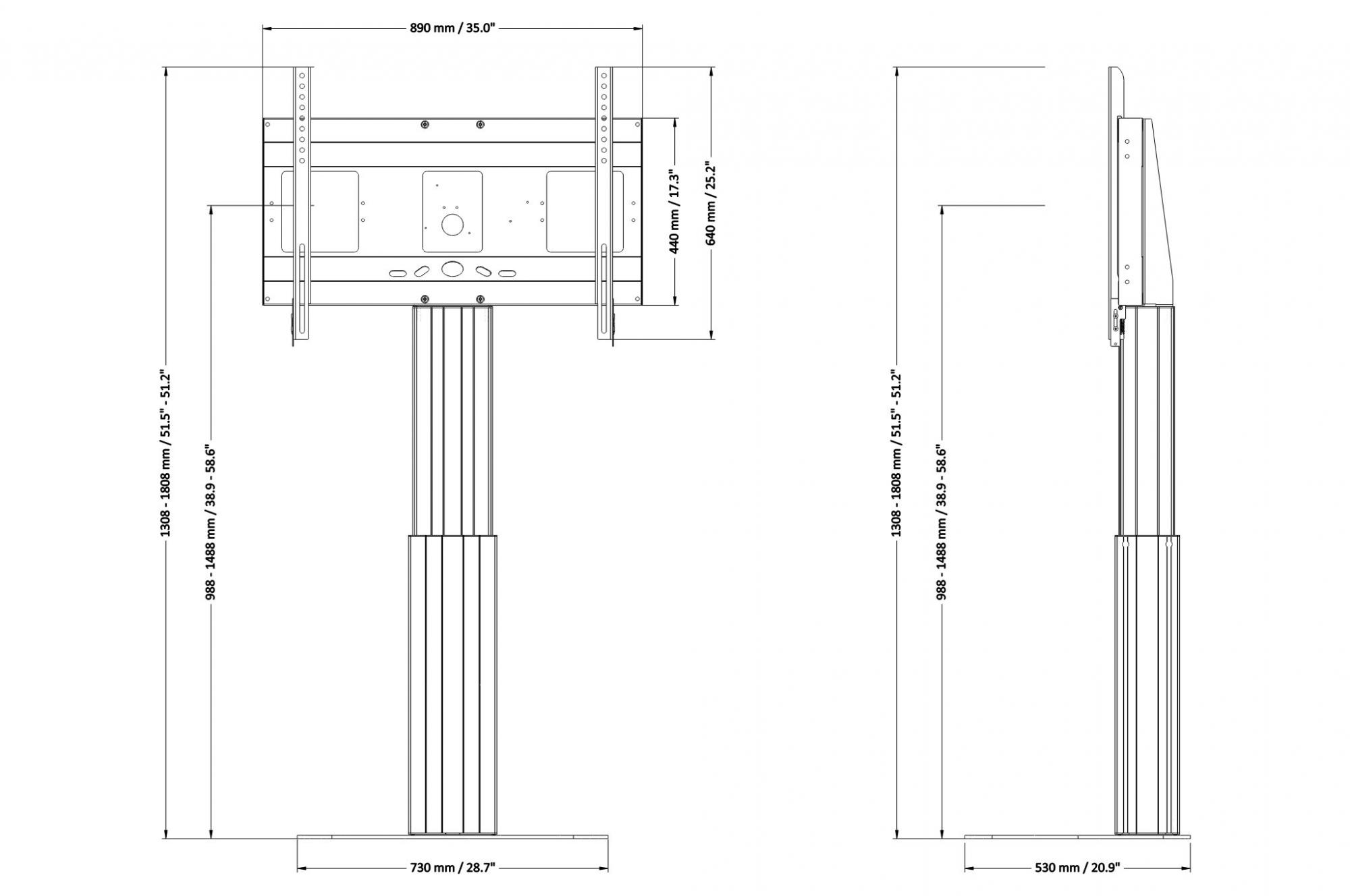

Center to floor distance 988 mm - 1488 mm38.9" - 58.6"
Load capacity136 kg 299.8 lbs
Width 890 mm35"
Height 1308 mm - 1808 mm51.5" - 71.2"
Depth 530 mm20.9"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"14 kg / 30.9 lbs
PSTSCETAB750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 35,8 kg / 79 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETAPLBKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAPLBKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAPLBKThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
8 mm strong floor plate
Detail image 8 mm strong floor plate SCETAPLBKThe 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
Wall mounting kit
Detail image Wall mounting kit SCETAPLBKThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETAPLBKBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
