Electrically height-adjustable monitor wall mount, 50 cm stroke

Column black anodized, middle display 121.5 - 171.5 cm, with collision protection
Item number: SCETAWBK

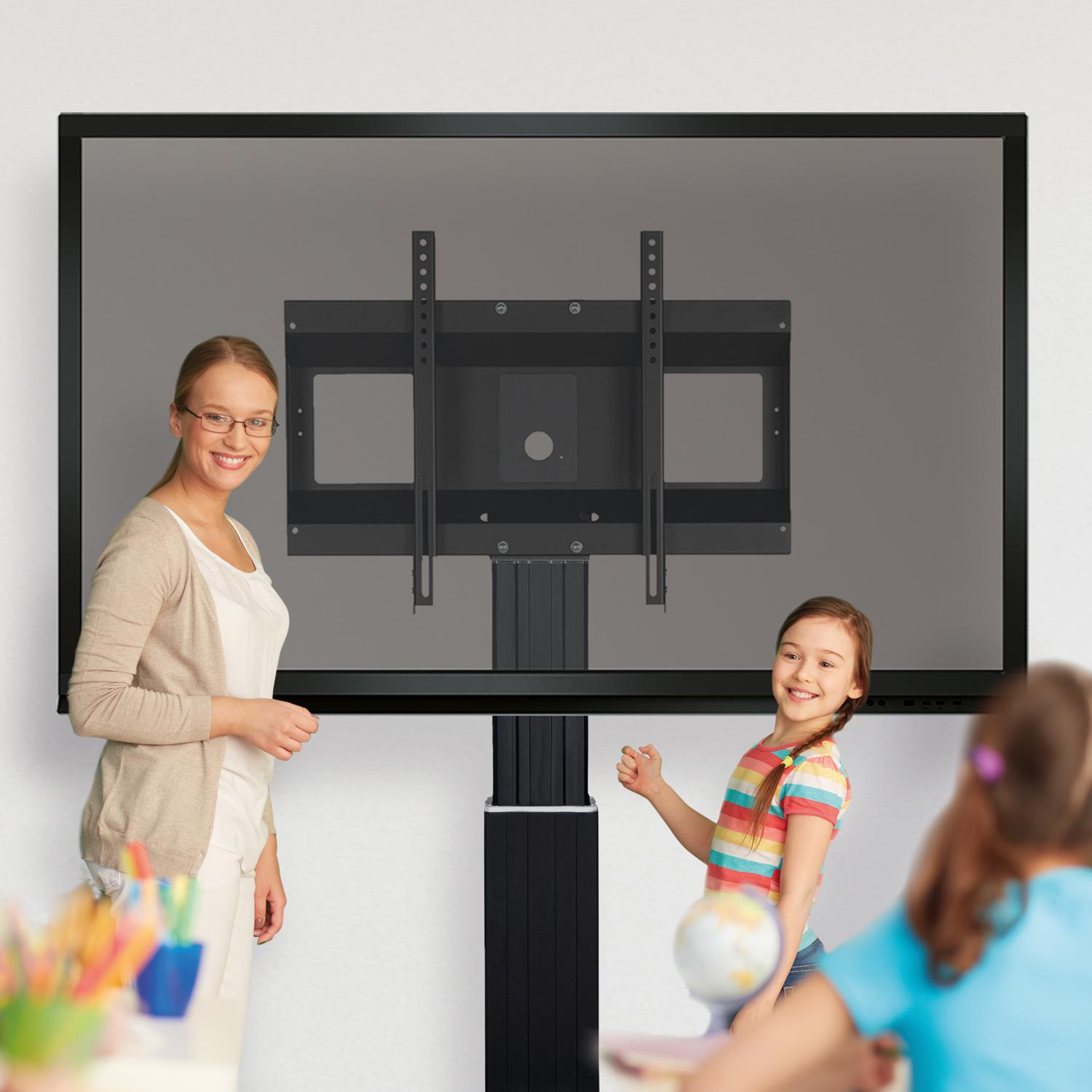

Product image Electrically height-adjustable monitor wall mount, 50 cm stroke SCETAWBK
Product image Electrically height-adjustable monitor wall mount, 50 cm stroke SCETAWBK-1 Product image Electrically height-adjustable monitor wall mount, 50 cm stroke SCETAWBK-2 Product image Electrically height-adjustable monitor wall mount, 50 cm stroke SCETAWBK-3 Product image Electrically height-adjustable monitor wall mount, 50 cm stroke SCETAWBK-4 Product image Electrically height-adjustable monitor wall mount, 50 cm stroke SCETAWBK-5 Product image Electrically height-adjustable monitor wall mount, 50 cm stroke SCETAWBK-6

Product description

Electrically height-adjustable monitor wall mount for 42"-100" (interactive) flat-panel displays.

The SCETAWBK is suitable for mounting displays with a screen diagonal of up to 100". The system includes a stable frame for holding the display with integrated cable management and two suspension rails with quick-release fasteners for quick and easy display mounting.

The SCETAWBK mount comes with a pylon column with a 50 cm stroke, including collision protection.

The system comes disassembled in two packages and can be shipped by courier service.


Features

  • Sturdy frame for displays up to 100"
  • Quick-snap fastener for easy display mounting
  • VESA, max. 800 x 600
  • Integrated cable management
  • 50 cm electrically height-adjustable, incl. collision protection
  • Safety through collision protection - if the system runs into an object, it first stops and then immediately moves back 3 cm
  • 4 floor leveling feet and two wall mounting brackets (7 cm wall clearance) included in the scope of delivery
  • Suitable for mounting on solid walls
  • Our base plate (PSTSCETA) is available for installation on lightweight walls at an extra charge

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberSCETAWBK
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all55" - 100"
Vertical travel50 cm

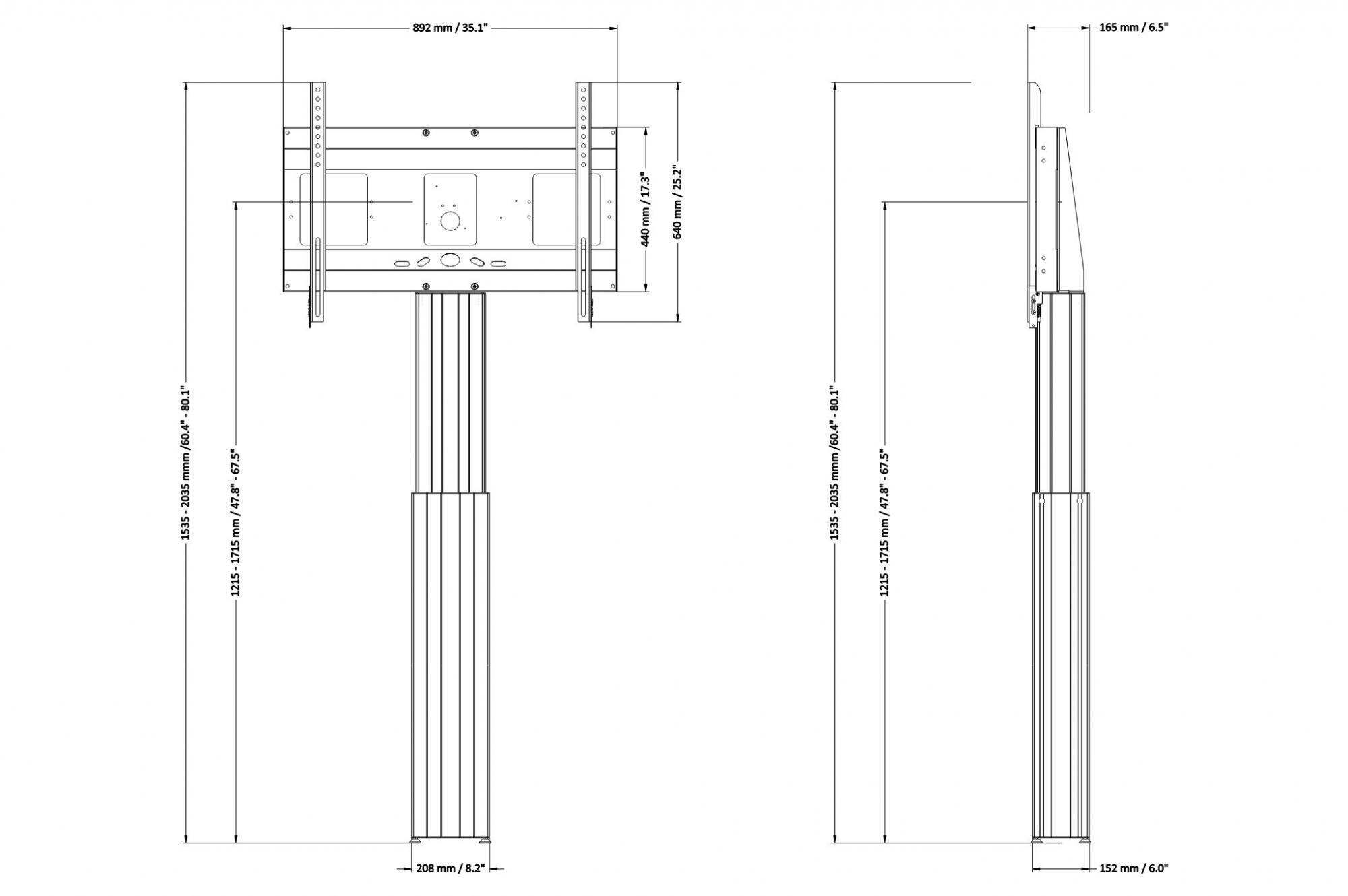

Center to floor distance 1215 mm - 1715 mm47.8" - 67.5"
Load capacity136 kg 299.8 lbs
Width 892 mm35.1"
Height 1535 mm - 2035 mm60.4" - 80.1"
Depth 165 mm6.5"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"14 kg / 30.9 lbs
Total weight 14 kg / 30.9 lbs
User manual DE/EN
