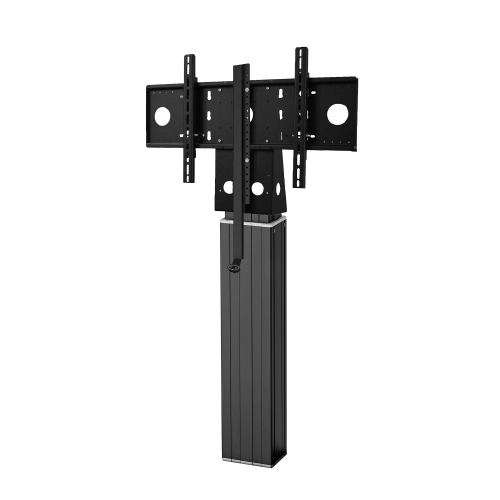

The motorized wall mount, MOW 150, is the ideal mount so that you can safely install very large and heavy displays. The mounting is suitable for both solid stone walls and lightweight walls.
The standard version of our MOW 150 includes a mount VESA 100×100 - 800×600.
An additional height grid in the column attachment makes it possible to vary the height by 20 cm. In the column top there is an integrated shelf on the back to hold e.g. a mini-PC.
The wall mounting is done with 2 angles made of metal (installation depth approx. 7 cm). 4 floor leveling screws for leveling uneven floors are included.
The motorized lifting column is made of anodized aluminum and is also available with a black column. The VESA mount is powder coated in RAL 9005 deep black, fine structure.
Item number | 83502037 | |
Vesa horizontal | 100 mm - 800 mm | |
Vesa vertical | 100 mm - 600 mm | |
Frame for all | 98" max. | |
Vertical travel | 50 cm | |
Center to floor distance | 1080 mm - 1580 mm | 42.5" - 62.2" |
Load capacity | 130 kg | 286.6 lbs |
Width | 210 mm | 8.3" |
Height | 1080 mm - 1780 mm | 42.5" - 70.1" |
Depth | 230 mm | 9.1" |
Weight | 50 kg | 110.2 lbs |
Packages | Package dimensions WxHxD | Package weight |
83502037 | 1270 x 300 x 200 mm / 50 x 11.8 x 7.9" | 30 kg / 66.1 lbs |
