VST-MS - Display stand with motorized height adjustment suitable for Microsoft Surface Hub 2 85"


Item number: 83400405
Product image VST-MS - Display stand with motorized height adjustment suitable for Microsoft Surface Hub 2 85" 83400405
Product image VST-MS - Display stand with motorized height adjustment suitable for Microsoft Surface Hub 2 85" 83400405-1 Product image VST-MS - Display stand with motorized height adjustment suitable for Microsoft Surface Hub 2 85" 83400405-2

Product description

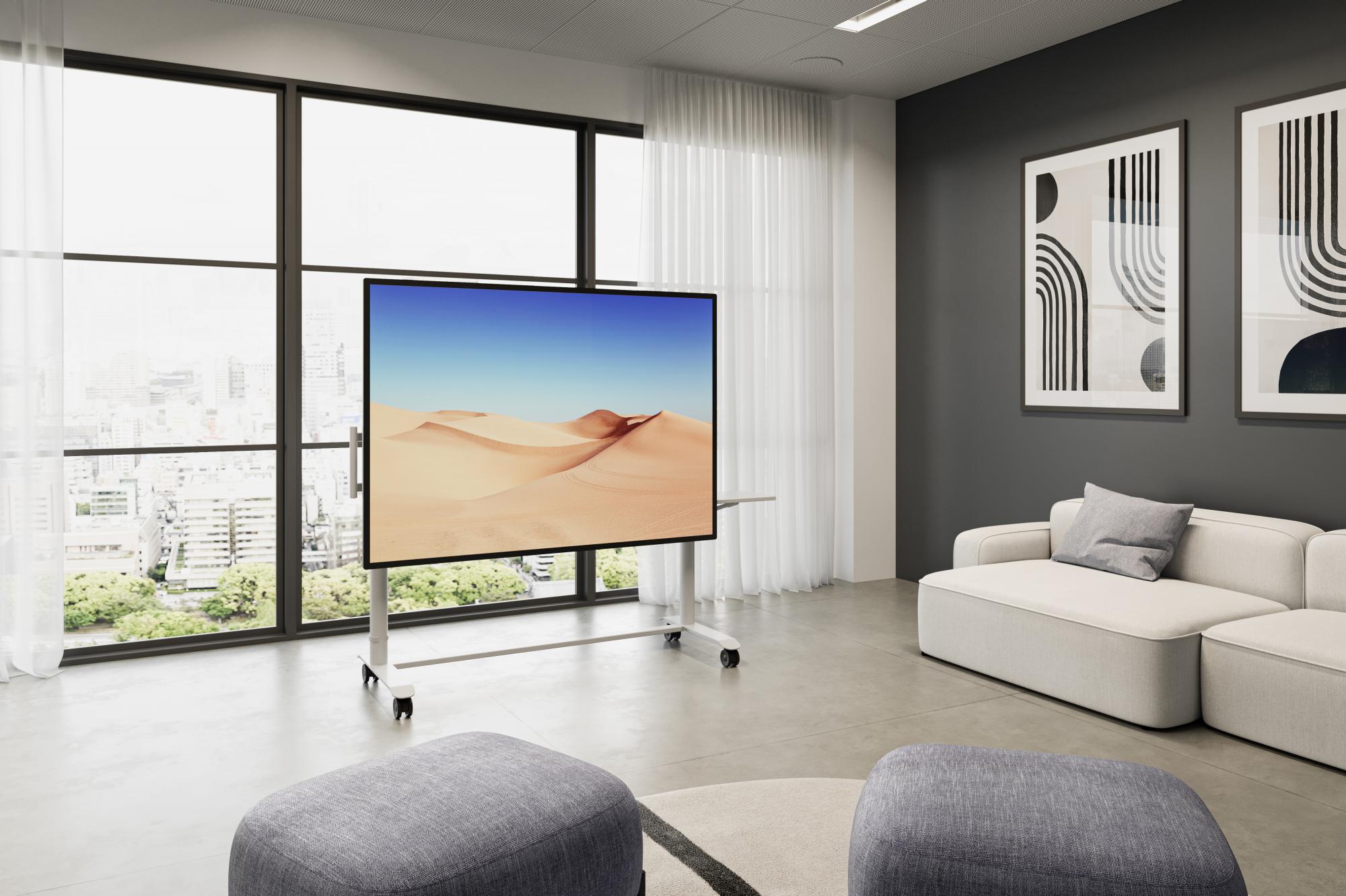

The VST-MS mobile display mount was specially developed for the Microsoft Surface Hub 2 85" and offers an elegant and flexible solution for professional applications. With a modern design in which the columns run flush to the right and left of the display, the mount blends seamlessly into any environment.

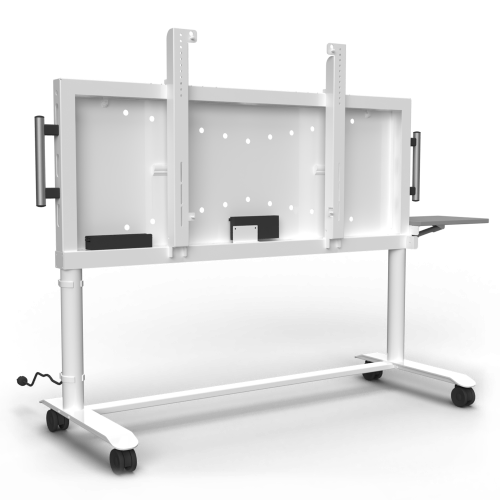

The white columns run flush to the right and left of the display for a clean, elegant appearance. The removable rear panel allows easy access to the internal technology and provides storage space for communication and collaboration equipment. The integrated shelf in the body is ideal for a mini PC or other accessories. The integrated cable management system ensures neat and tidy cable routing.
The up and down switch integrated into the side of the housing ensures convenient and continuous adjustment of the display height.

The VST-MS is equipped with 4 castors, 2 of which are lockable, ensuring easy mobility and a secure stand.

Ideal for professional applications in conference rooms, training centers and other environments where large displays and interactive solutions are used for communication and collaboration. The VST-MS mobile display mount offers a versatile, elegant and functional solution that provides both stability and flexibility.

The display mount is supplied disassembled and boxed.


Features

  • Electric height adjustment: 60 cm
  • Max. load capacity 100 kg
  • VESA width 400,600,800,1000,1200
  • VESA height 200 to 600
  • Cable management inside the chassis and behind the column
  • On/off switch integrated into the side of the housing
  • incl. 4 smooth-running castors, 2 of which are lockable
  • Supplied disassembled and packed in cardboard boxes

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon maximum load
Max. load
220.5 lbs
Icon maximal VESA
Max. Vesa
1200 x 600
Item number83400405
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all86"
Center to floor distance 875 mm - 1475 mm34.4" - 58.1"
Load capacity100 kg 220.5 lbs
Width 1500 mm59.1"
Height 1180 mm - 1780 mm46.5" - 70.1"
Depth 700 mm27.6"
Packages Package dimensions WxHxD Package weight
834004051550 x 150 x 700 mm / 61 x 5.9 x 27.6"60 kg / 132.3 lbs
