Screen with motor - "Congress S

W/H: 400x300 cm, with motor
Item number: 20123040-S
Product image Screen with motor - "Congress S 20123040-S
Product image Screen with motor - "Congress S 20123040-S-1

Product description

The Congress-S is an extremely high-quality projection screen, which is ideal for use in the field of congresses and events. It is characterized by its special sizes up to 10 meters and its technical equipment.

Depending on the format of the projection screen, the Congress-S is manufactured up to W 600 x H 400 cm in a robust sheet steel housing in RAL 9016 Traffic White (15 x 15 or 20 x 20 cm), from a format larger than 600 cm width in a galvanized housing (30 x 30 or 40 x 40 cm) Other colors are optionally possible according to RAL Classic, please contact us!

The projection screen Congress-S is designed for ceiling mounting by mounting brackets on the outer sides of the housing. Up to a size of W 600 x H 400 cm (housing 15 x 15 or 20 x 20 cm) there is a revision possibility .without disassembly of the housing. From a size larger than 600 cm width (housing 30 x 30 or 40 x 40 cm) this revision possibility is omitted.

Important note on DIN 56950-4 - All projection screens over 5 meters are equipped with a safety catch and a testable safety limit switch as standard. The built-in switch meets the requirements demanded in stage technology. Thus, all necessary criteria for the tendering and testing of mechanical equipment in operating facilities are already fulfilled in our standard design.


Features

  • formats up to 1.000 x 600 cm available
  • for ceiling mounting
  • wall bracket optionally available
  • pre-assembly frame up to 600 x 400 cm optionally available
  • Construction DIN 56950-4: 2015 Safety requirements and tests for prefabricated picture walls

Icon ceilingmounted system
Ceiling mounted

Configuration

Item number20123040-S
Image size 4000 mm - 3000 mm157.5" - 118.1"
Weight 70 kg154.3 lbs
Packages Package dimensions WxHxD Package weight
20123040-S4500 x 180 x 180 mm / 177.2 x 7.1 x 7.1"110 kg / 242.5 lbs
Product sheet DE
20123040-S
Image PDF download Image show PDF
Product sheet EN
20123040-S
Image PDF download Image show PDF

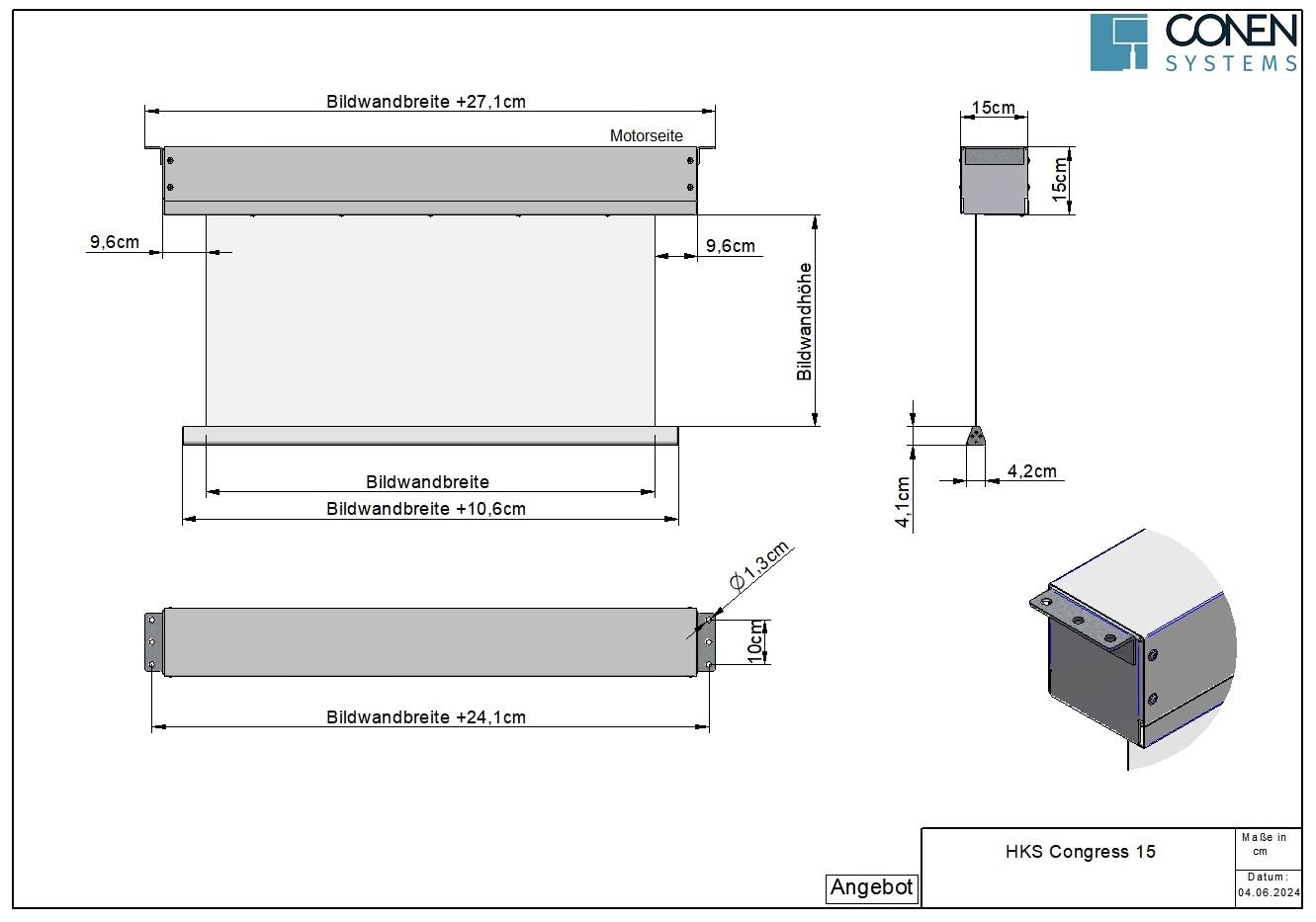

technical drawing
20123040-S
Image PDF download Image show PDF
