Motorized display stand with 50 cm of vertical travel

column black anodized, center of display 121- 171 cm, floor plate, anti-collision
Item number: SCETAPBK

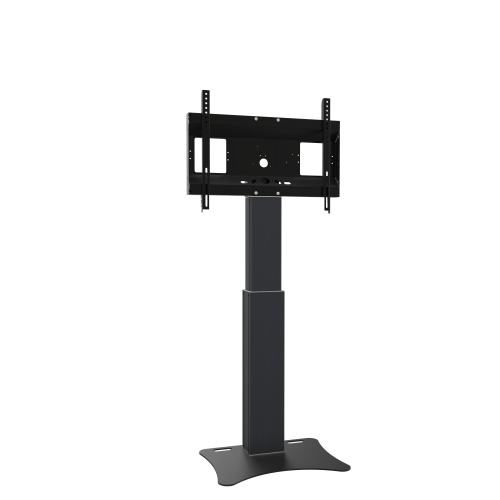

Product image Motorized display stand with 50 cm of vertical travel SCETAPBK

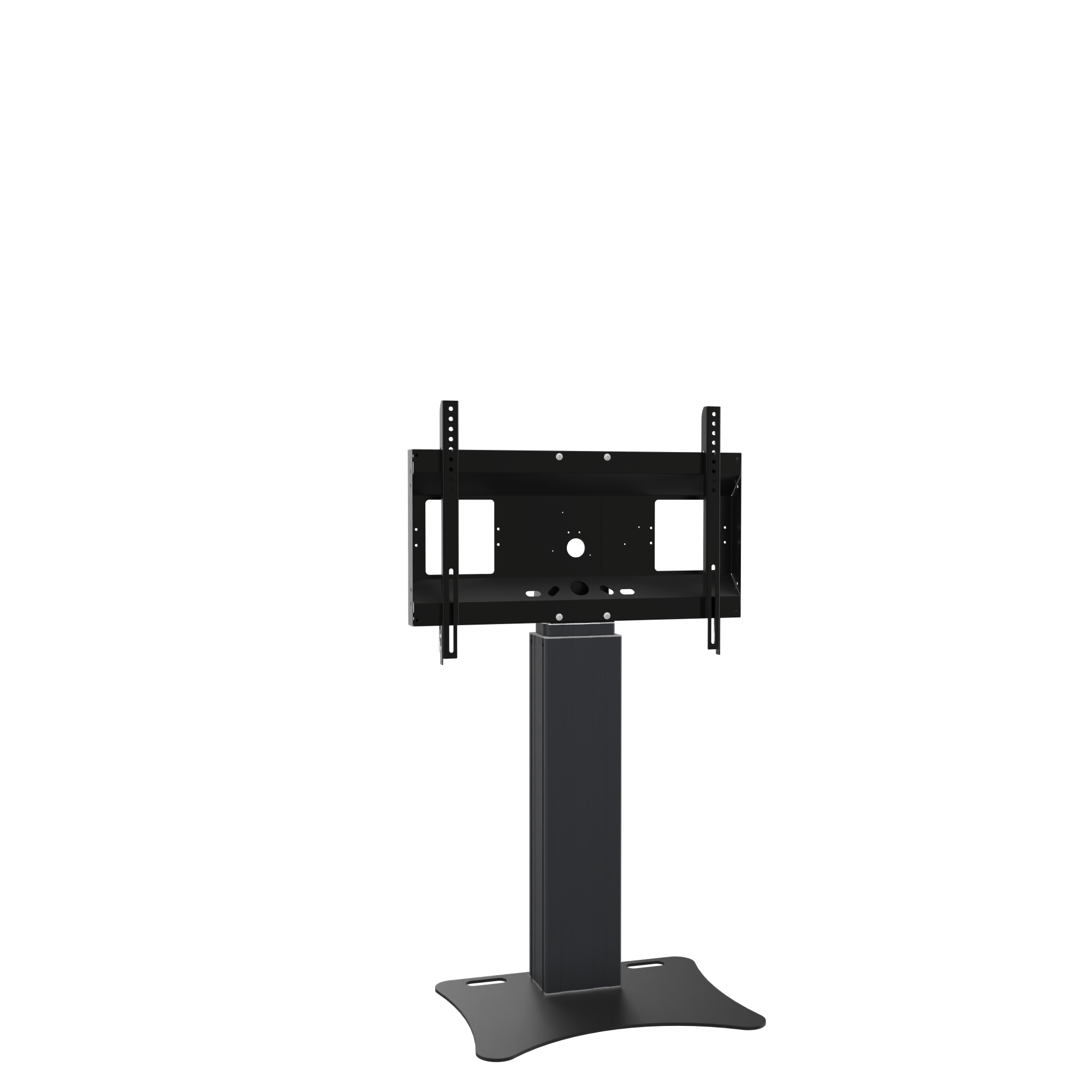

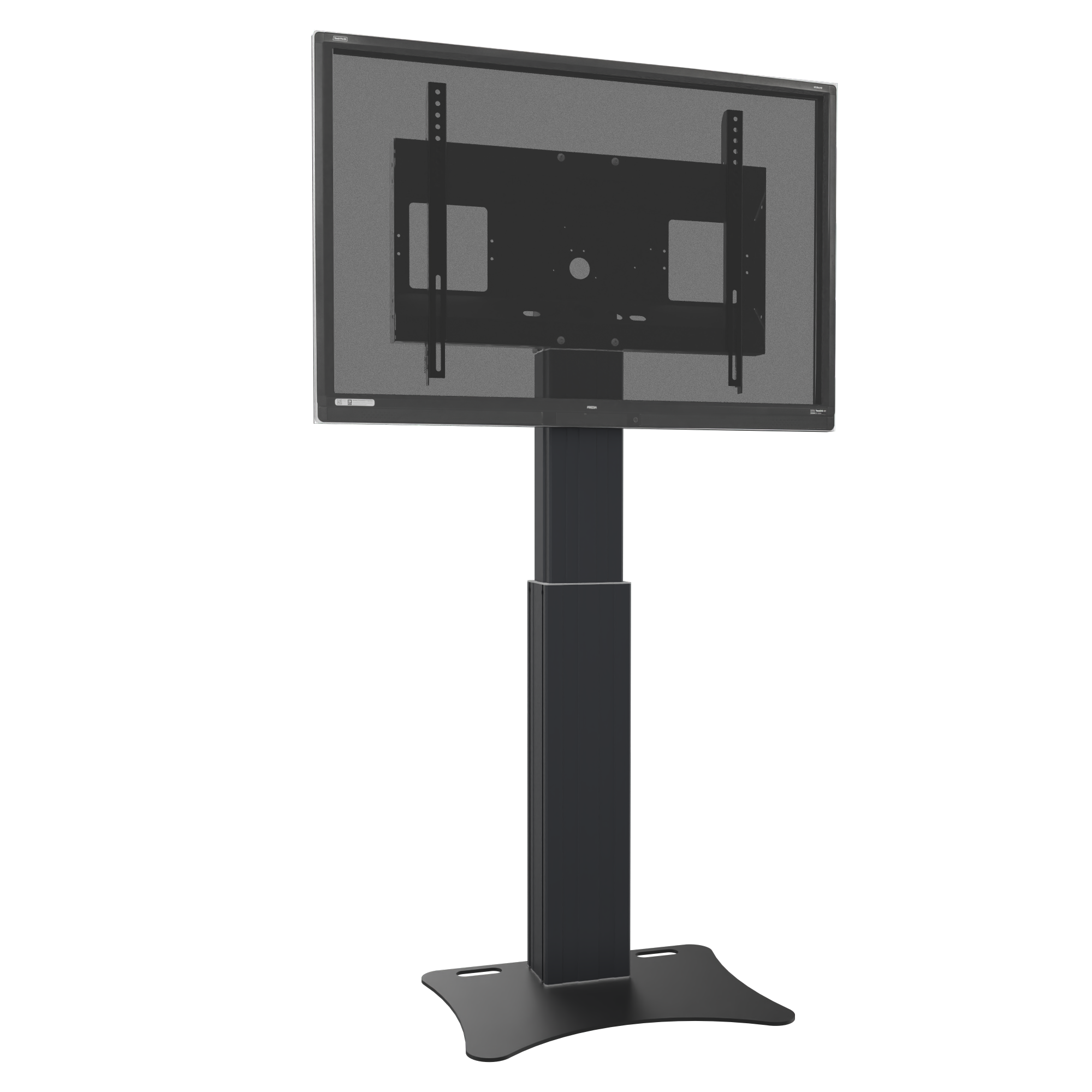

Product image Motorized display stand with 50 cm of vertical travel SCETAPBK-1 Product image Motorized display stand with 50 cm of vertical travel SCETAPBK-2 Product image Motorized display stand with 50 cm of vertical travel SCETAPBK-3

Product description

Motorized display stand for 42"-100" (interactive) flat-panel displays. Can be mounted to a wall.

The SCETAPBK is designed for flat panel displays up to 100”. The units feature a sturdy display mount with integrated cable management and "pull & release" locking brackets for quick and easy mounting of the display.

The SCETAPBK display stand comes with a column that offers 50 cm of vertical travel.

A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powdercoated in black.

The unit comes flat-packed in 3 cartons and is courier-shippable.


Features

  • Heavy duty mount for displays up to 100"
  • "Pull & release" brackets for easy mounting of display
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 50 cm of smooth motorized height adjustment
  • With anti-collision function
  • Optimum stability thanks to the floor plate and 2 wall mount brackets
Request a quotation!
Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon platform stand
Free-standing
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbsIcon maximal VESA
Max. Vesa
800 x 600

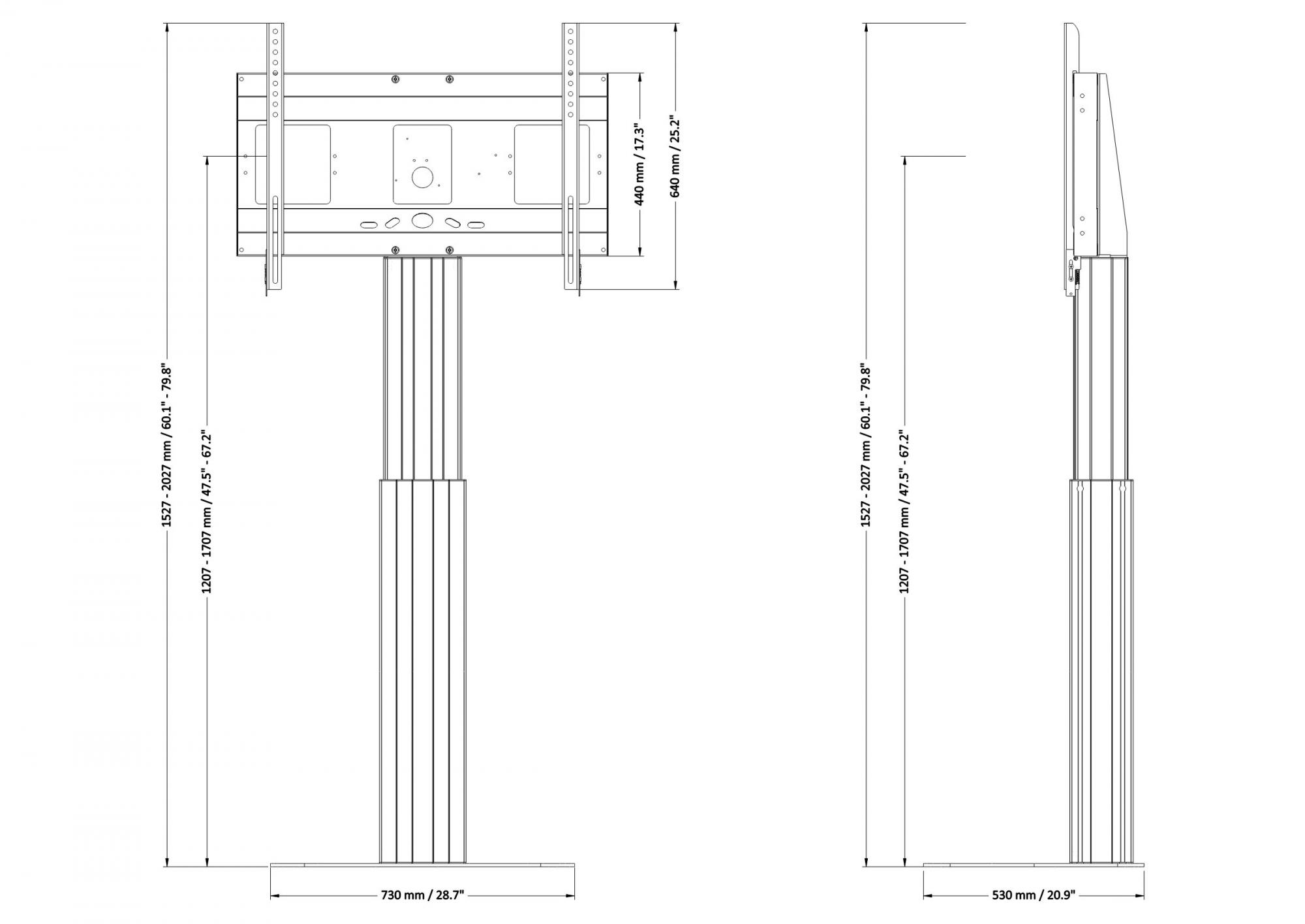

Item numberSCETAPBK
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all55" - 100"
Vertical travel50 cm
Center to floor distance 1207 mm - 1707 mm47.5" - 67.2"
Load capacity136 kg 299.8 lbs
Width 730 mm28.7"
Height 1527 mm - 2027 mm60.1" - 79.8"
Depth 530 mm20.9"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"14 kg / 30.9 lbs
CCE-70BK
PSTSCETAB750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETAPBKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAPBKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAPBKThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.

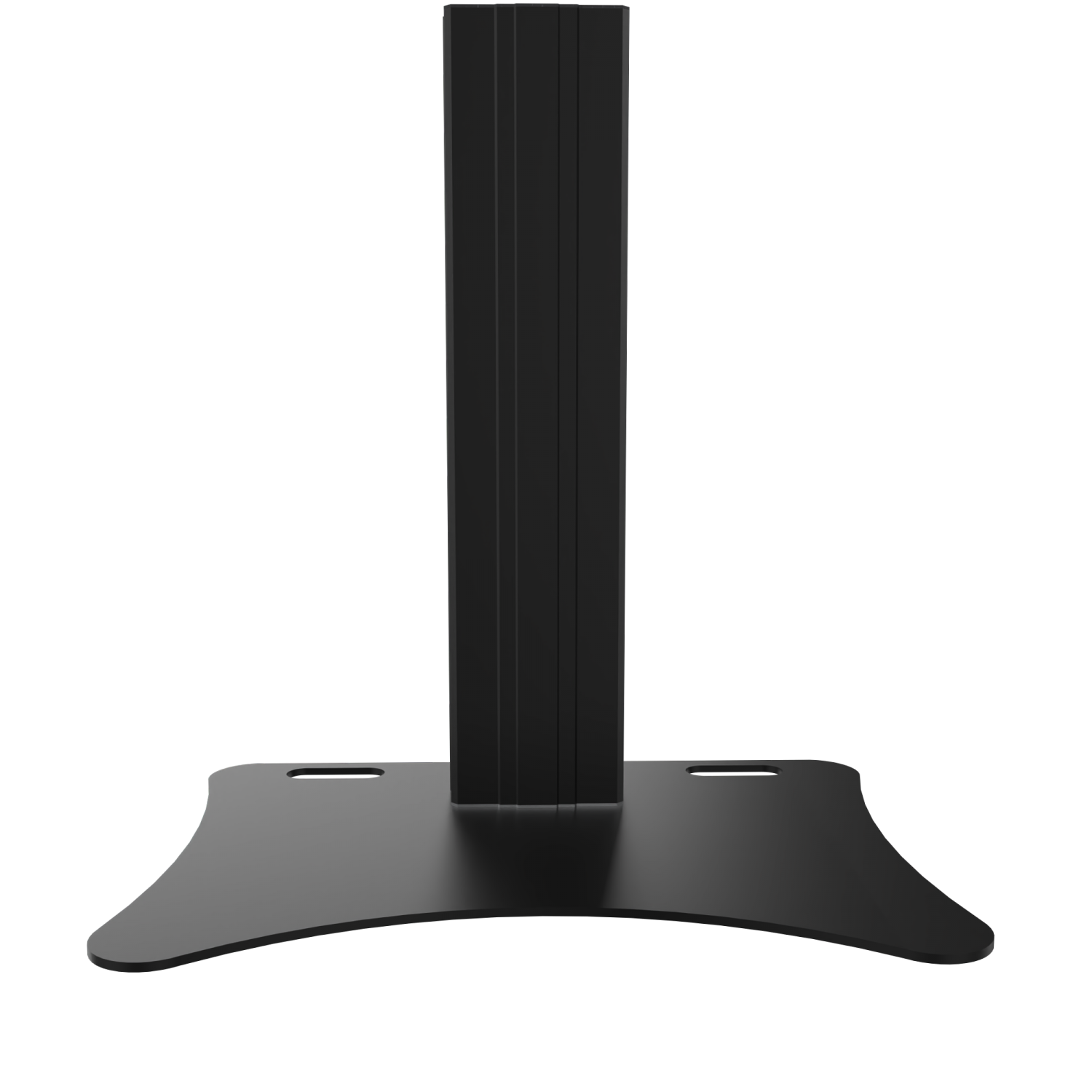

8 mm strong floor plate
Detail image 8 mm strong floor plate SCETAPBKThe 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
Wall mounting kit
Detail image Wall mounting kit SCETAPBKThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETAPBKBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
User manual DE/EN
 Image PDF download Image show PDF
