Electric height adjustable XL monitor stand, 50 cm stroke, incl. collision protection

Column silver anodized, center display 121 - 171 cm, base plate, collision protection
Item number: SCETA12PK

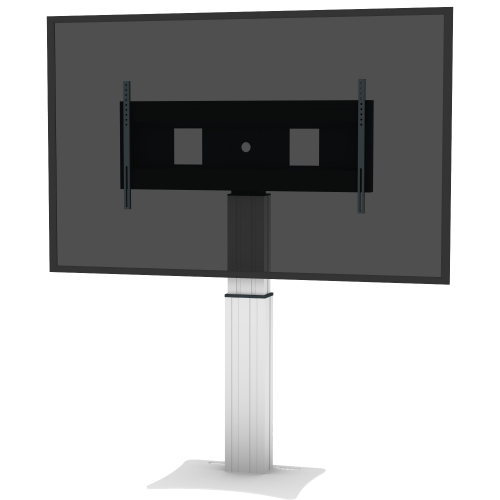

Product image Electric height adjustable XL monitor stand, 50 cm stroke, incl. collision protection SCETA12PK
Product image Electric height adjustable XL monitor stand, 50 cm stroke, incl. collision protection SCETA12PK-1

Product description

Electric height adjustable monitor stand & TV wall mount with XL display mount. Specially designed for mounting touch screen displays. The motorized height adjustable TV wall mount is equipped with an extra wide frame. The system comes with the 2 link Conen Mounts pylon column and with 50 cm height adjustment.

An 8 mm thick steel plate is fixed under the pylon column. The monitor stand can be placed freestanding in the room or mounted to a lightweight wall. Recesses/handles in the base plate facilitate handling. The plate is plastic powder coated in white aluminum.

The system comes disassembled in two packages and can be shipped by courier.


Features

  • XL monitor stand with max. VESA 1200x600
  • Designed for use with IFPDs and LFDs
  • Easy mounting of heavy devices thanks to suspension rails with quick release fastener for securing the display
  • Display frame with preparation for cable management
  • Motor unit with 50 cm height adjustment is safely installed inside the pylon column
  • Safety due to collision protection - if the system runs into an object, it stops and moves back 3 cm
  • A cable control unit is included as standard
  • Base plate and two wall mounting brackets (7 cm wall distance) included in delivery

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon platform stand
Free-standing
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximal VESA
Max. Vesa
1200 x 600
Item numberSCETA12PK

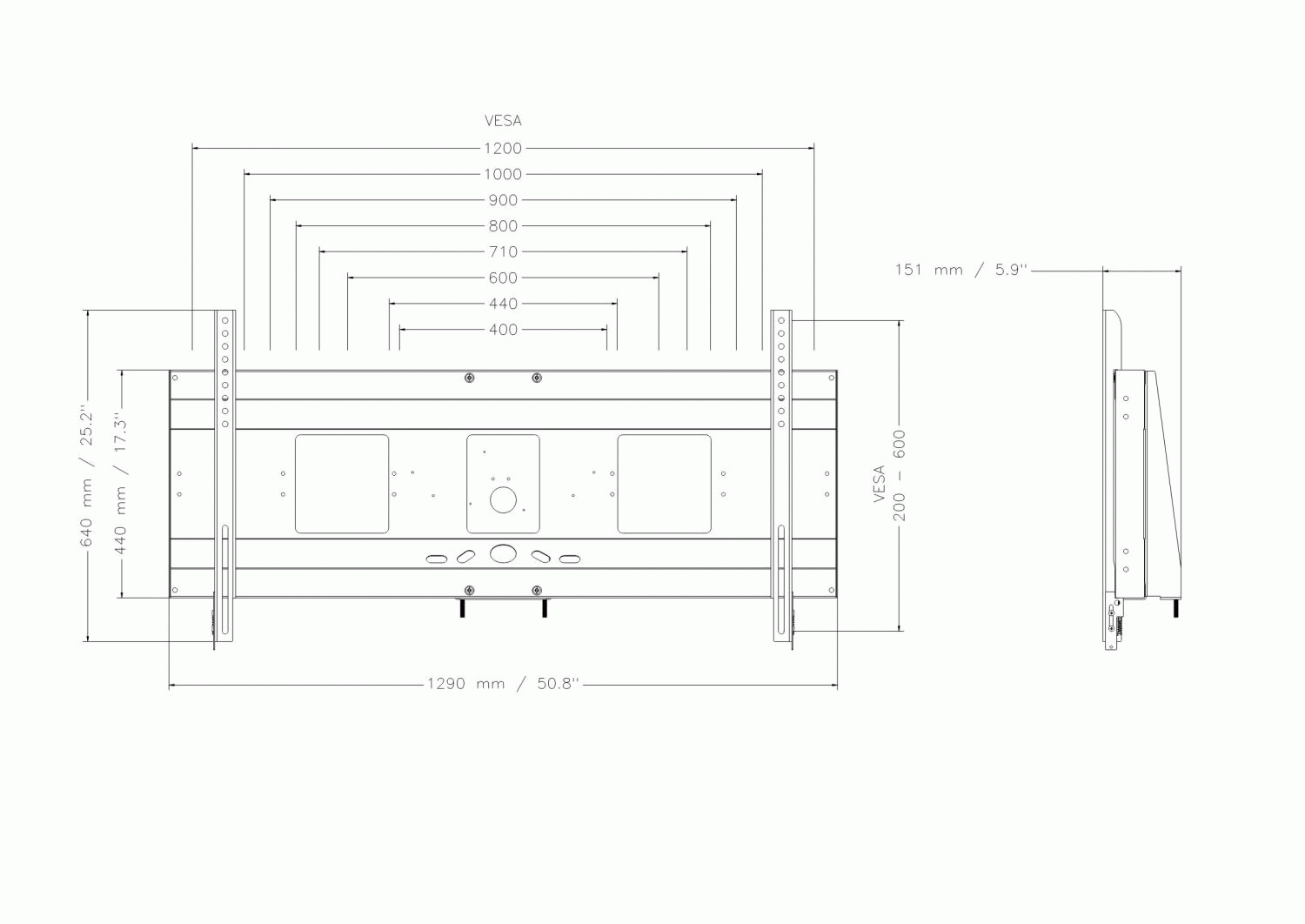

Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all70" - 120"
Vertical travel50 cm
Center to floor distance 1208 mm - 1708 mm47.6" - 67.2"
Width 1290 mm50.8"
Height 1528 mm - 2028 mm60.2" - 79.8"
Depth 530 mm20.9"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
User manual DE/EN
Image PDF download Image show PDF
