Display stand with motorized height adjustment - "VST-S

Column: black with H-base and casters
Item number: 83400333

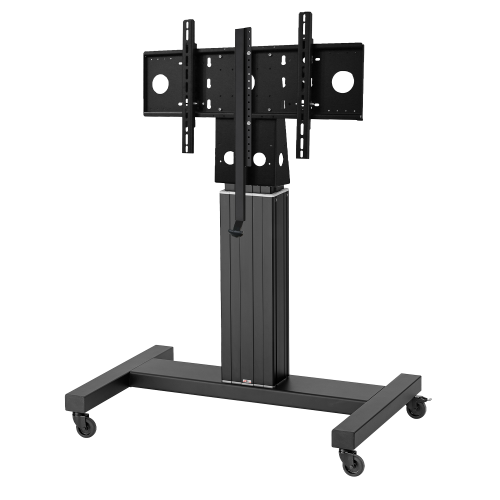

Product image Display stand with motorized height adjustment - "VST-S 83400333
Product image Display stand with motorized height adjustment - "VST-S 83400333-1

Product description

The electric display stand VST-S is the optimal solution for office and conference rooms. Thanks to its 4 smooth-running castors, 2 of which are lockable, it can be easily moved to another room if required. Ideal for moving almost all display sizes 50 cm in height by motor. An additional height grid in the column attachment allows the height to be varied by a further 20 cm.

The display stand VST-S is available with V- or H-foot as well as with base plate. The column is optionally available in silver anodized or in black. The VST-S is equipped with a universal mount according to VESA standard 100×100 - 800×600. In the column top you will find storage space for smaller technical units. A cover for the storage compartment is included in the scope of delivery.

Due to the motorized lifting column, you can move your display up to max. 130 kg steplessly in height without any problems. Our electric display stands are equipped with an up and off switch. This is attached to the LCD mount with a bracket and is discreetly located directly below your display. This makes handling as easy as possible for you.

To guarantee you a flawless look, the system's own cable management takes place behind the column.


Features

  • Made in Germany
  • For a display up to max. 98"
  • Freestanding
  • Barrier-free
  • Load capacity up to max. 130 kg
  • 50 cm motorized movable
  • Storage compartment in column top H 50 x W 25 x D16 (D 16 cm at the widest point!)

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon multi display
Multi display
Icon maximum load
Max. load
286.6 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Configuration

Item number83400333
Vesa horizontal100 mm - 800 mm
Vesa vertical100 mm - 600 mm
Frame for all98" max.
Vertical travel50 cm
Load capacity130 kg 286.6 lbs
Width 1100 mm43.3"
Height 1560 mm - 2060 mm61.4" - 81.1"
Depth 720 mm28.3"
Weight 62 kg136.7 lbs
