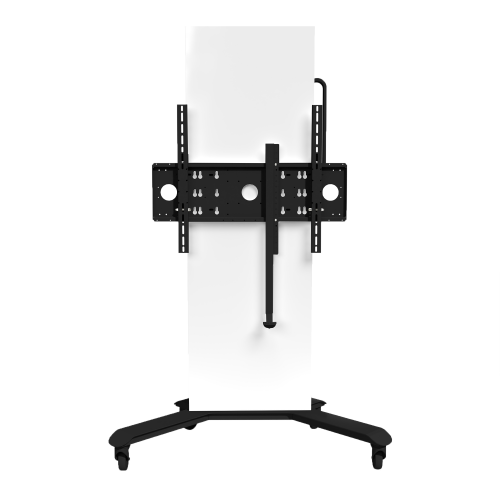

MOW-S flex

Mobile display stand with motorized height adjustment to accommodate displays up to 98".
Item number: 83502012
Product image MOW-S flex 83502012
Product image MOW-S flex 83502012-1 Product image MOW-S flex 83502012-2 Product image MOW-S flex 83502012-3 Product image MOW-S flex 83502012-4 Product image MOW-S flex 83502012-5 Product image MOW-S flex 83502012-6 Product image MOW-S flex 83502012-7 Product image MOW-S flex 83502012-8 Product image MOW-S flex 83502012-9 Product image MOW-S flex 83502012-10 Product image MOW-S flex 83502012-11

Product description

The MOW-S flex complements our MOW series with two free-standing display stands. The high-quality and well thought-out design makes it easy to mount the display and media technology. The MOW-S flex is available as a motorized height-adjustable version with a 50 cm stroke or in a version where the display can be hung in 6 grid points.
available.

Media technology furnishing is also made easier by the color-customizable design. This is because the MOW-S flex not only focuses on functionality, but also on visual presence.

Thanks to the mobile V-base and the stable base plate, the MOW-S flex display stands are barrier-free.


Features

  • Made in Germany

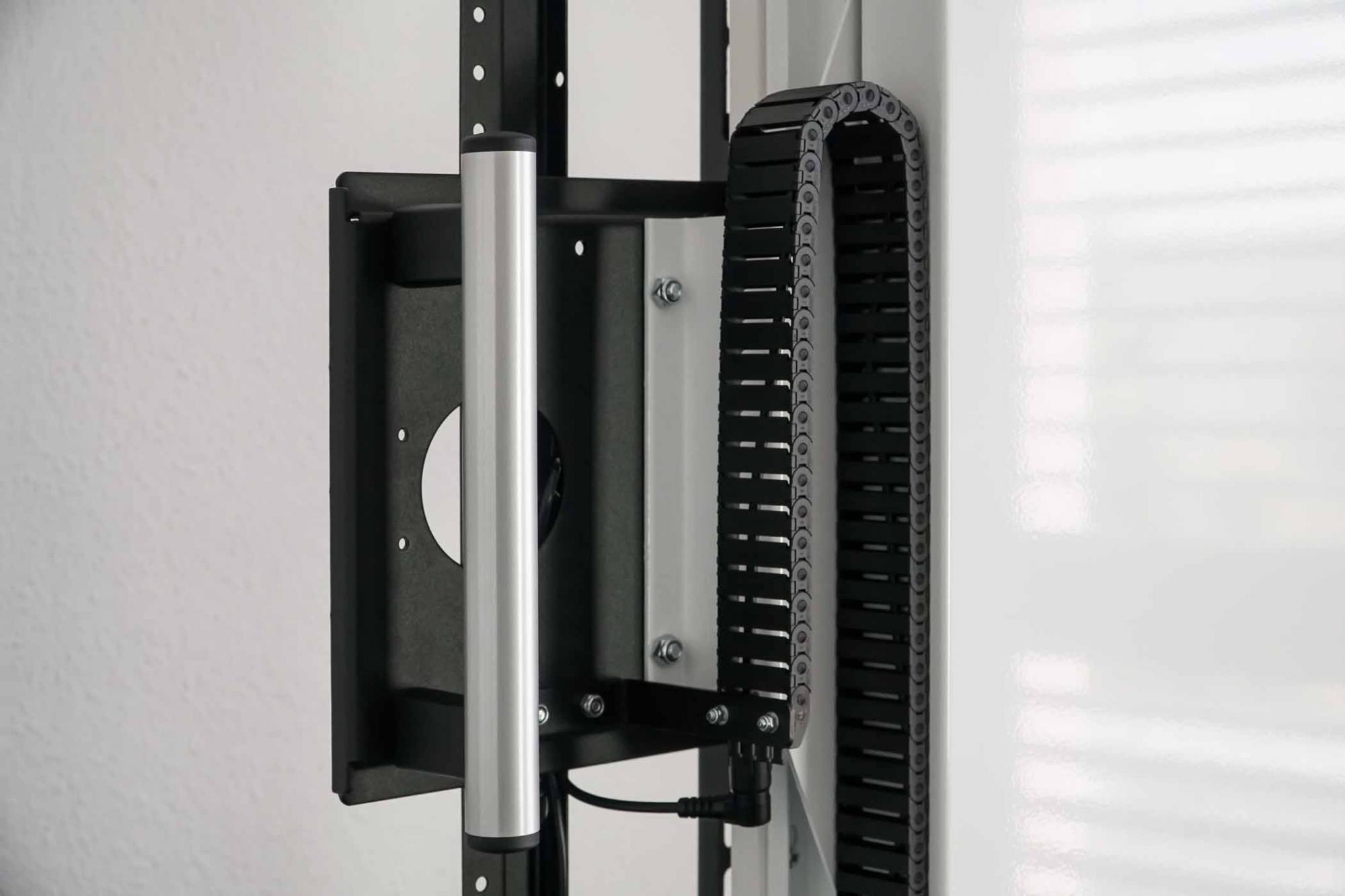

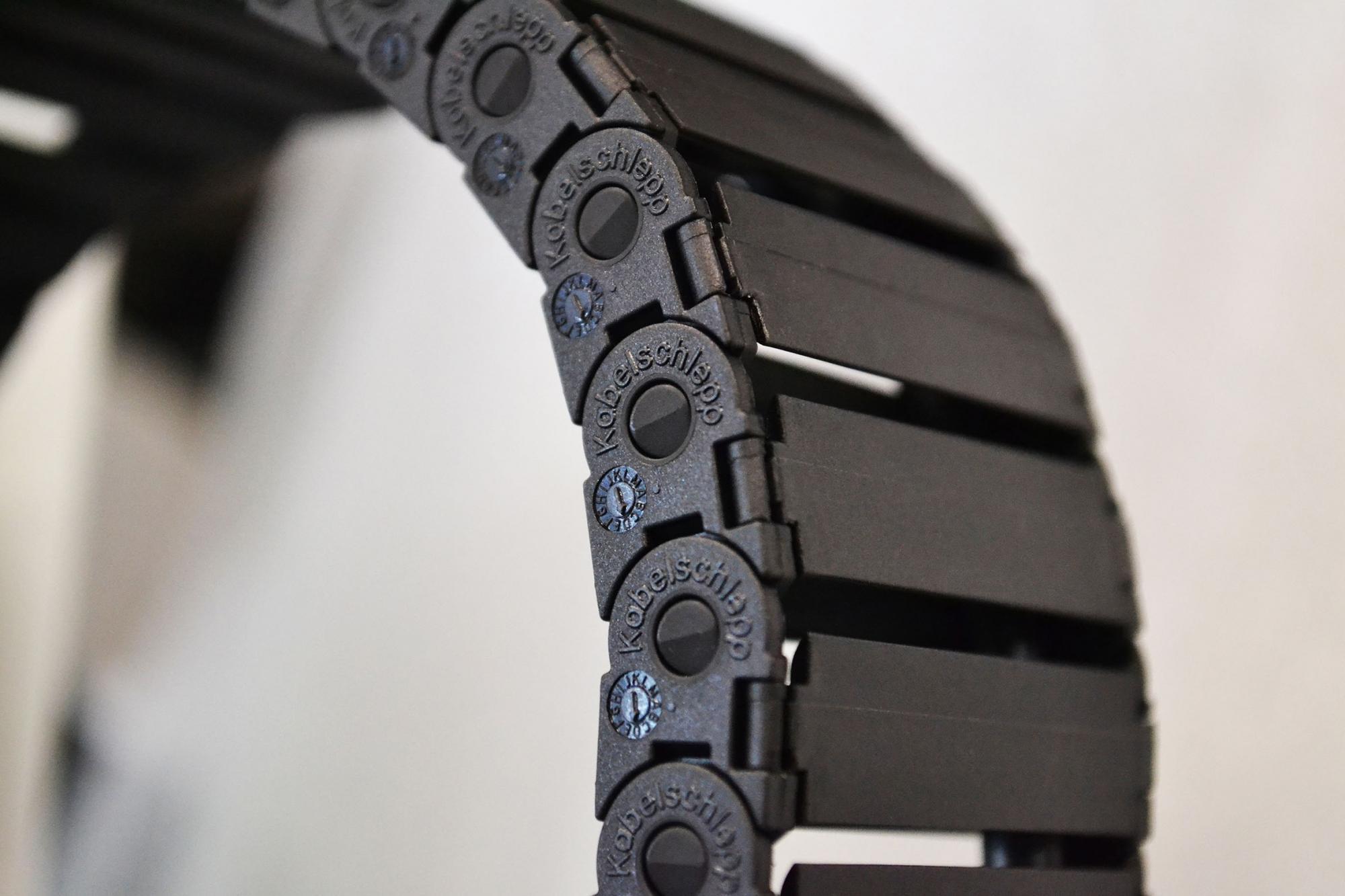

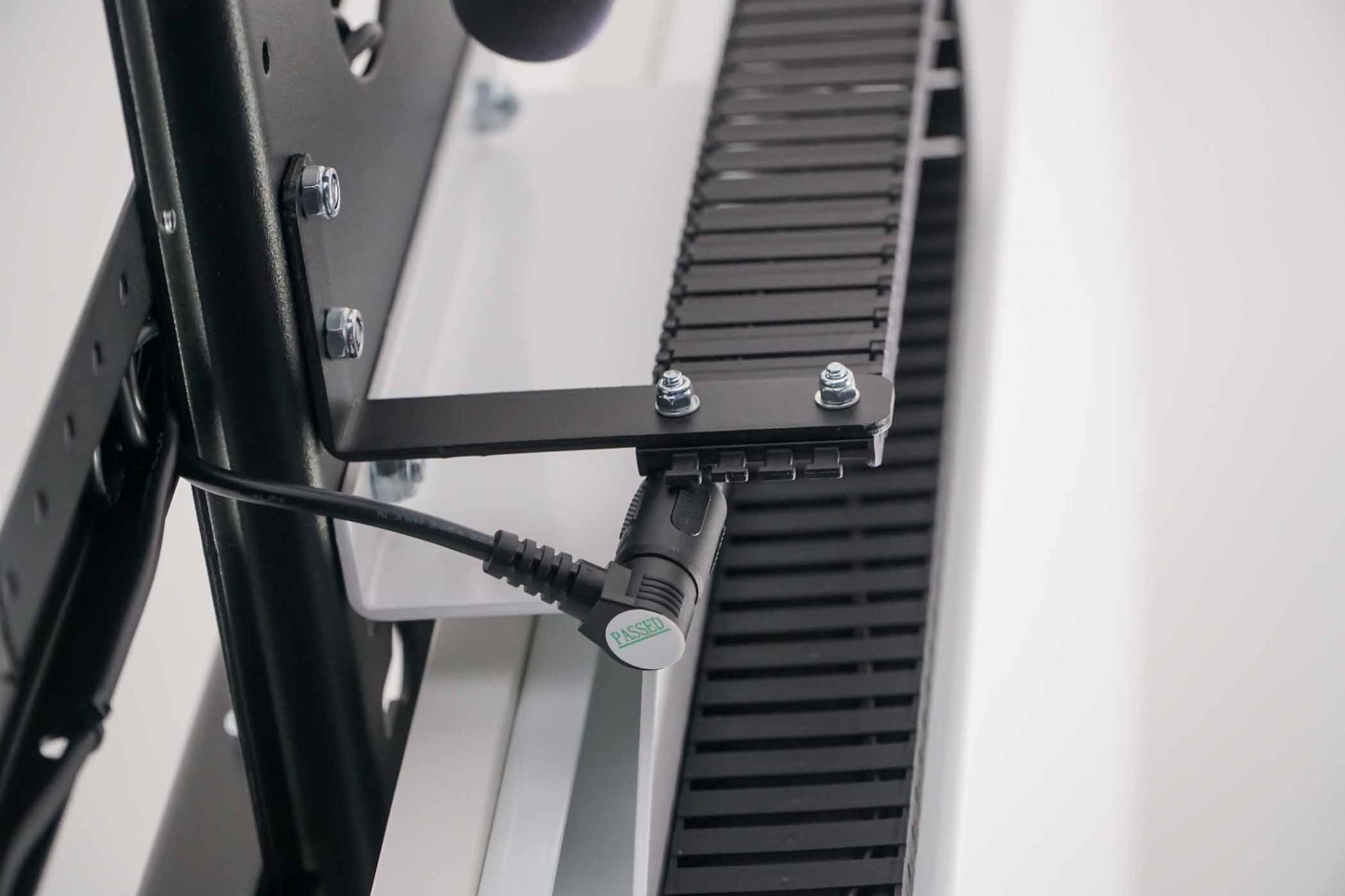

  • Integrated cable management
  • Barrier-free
  • Load capacity up to max. 100 kg
  • Freely selectable: mobile V-foot or stable base plate
  • Can be customized visually

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon maximum load
Max. load
220.5 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Configuration

Item number83502012
Vesa horizontal100 mm - 800 mm
Vesa vertical100 mm - 600 mm
Frame for all86" max.
Vertical travel50 cm
Center to floor distance 1210 mm - 1710 mm47.6" - 67.3"
Load capacity100 kg 220.5 lbs
Width 490 mm19.3"
Height 1950 mm76.8"
Depth 110 mm4.3"
Weight 107 kg235.9 lbs
Packages Package dimensions WxHxD Package weight
835020121400 x 2100 x 1000 mm / 55.1 x 82.7 x 39.4"127 kg / 280 lbs
Product sheet DE
83502012
Image PDF download Image show PDF
Product sheet EN
83502012
Image PDF download Image show PDF
Miscellaneous
Image PDF download Image show PDF
Miscellaneous
Image PDF download Image show PDF

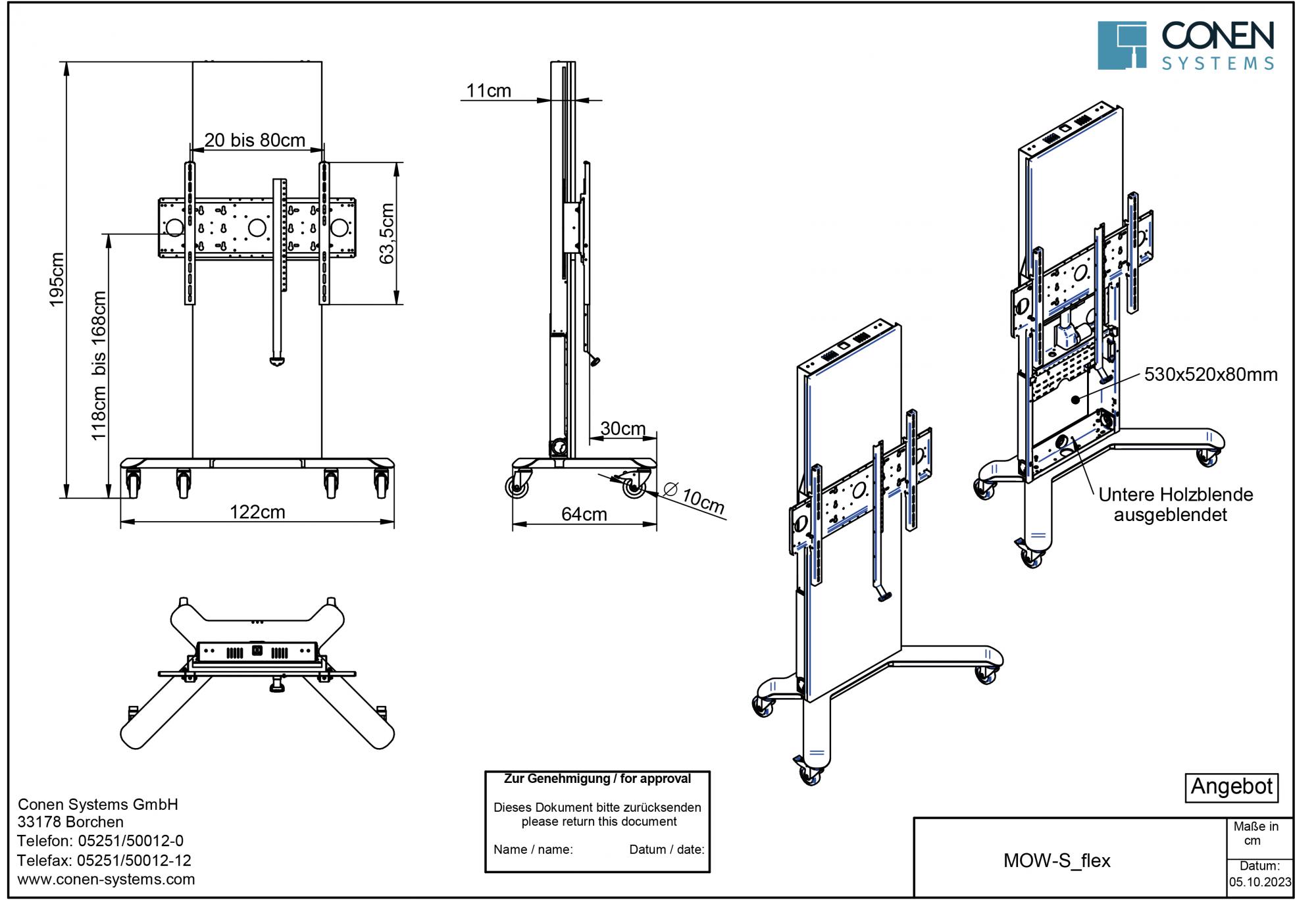

technical drawing
83502012
Image PDF download Image show PDF
